Racord rapid drept prelungitor, egal sau inegal, tub in inch
Tip produs: 3A06
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid prelungitor push-in
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743.
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

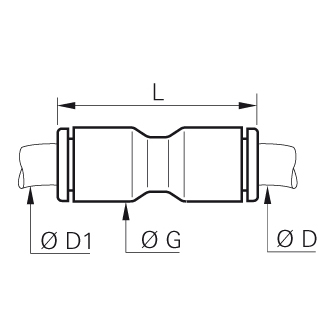

| Cod | ØD inch | ØD1 inch | ØG mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|
| 3106 53 00 | 1/8 | 1/8 | 8,636 | 24,587 |
|
Adauga |
| 3106 53 56 | 1/8 | 1/4 | 10,922 | 33,477 |
|
Adauga |
| 3106 55 00 | 3/16 | 3/16 | 10,922 | 36,576 |
|
Adauga |
| 3106 56 00 | 1/4 | 1/4 | 10,922 | 29,464 |
|
Adauga |
| 3106 60 00 | 3/8 | 3/8 | 16 | 42 |
|
Adauga |
| 3106 60 10 | 3/8 | 10 | 12 | 50,5 |
|
Adauga |
| 3106 60 56 | 3/8 | 1/4 | 16,002 | 40,996 |
|
Adauga |
| 3106 62 00 | 1/2 | 1/2 | 22 | 55 |
|
Adauga |
