Racord rapid drept, filet exterior BSPT, tub in inch
Tip produs: 3D75
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid drept push-in, filet exterior conic BSPT preteflonat
- strangere pe exterior cu cheie fixa/tubulara, sau pe interior cu cheie imbus (hexagonala)
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Tratament : PTFE (teflon)
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

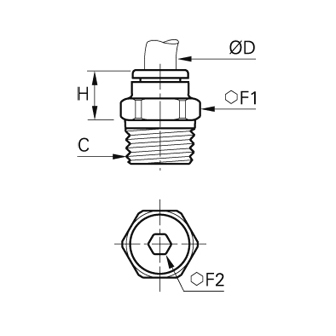

| Cod | ØD inch | C | F1 mm | F2 mm | H mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 3175 53 10 | 1/8 | R1/8 | 11 | 3 | 8,509 |
|
Adauga |
| 3175 55 10 | 3/16 | R1/8 | 11,113 | 3,175 | 15,494 |
|
Adauga |
| 3175 55 13 | 3/16 | R1/4 | 14,288 | 3,967 | 14,986 |
|
Adauga |
| 3175 56 10 | 1/4 | R1/8 | 11 | 4 | 11,989 |
|
Adauga |
| 3175 56 13 | 1/4 | R1/4 | 14 | 4 | 9,500 |
|
Adauga |
| 3175 60 13 | 3/8 | R1/4 | 16 | 7 | 20,5 |
|
Adauga |
| 3175 60 17 | 3/8 | R3/8 | 17 | 7 | 16,5 |
|
Adauga |
| 3175 60 21 | 3/8 | R1/2 | 21 | 7 | 14 |
|
Adauga |
| 3175 62 13 | 1/2 | R1/4 | 22 | 6 | 26,924 |
|
Adauga |
| 3175 62 17 | 1/2 | R3/8 | 22 | 7 | 25,908 |
|
Adauga |
| 3175 62 21 | 1/2 | R1/2 | 24 | 7 | 20,498 |
|
Adauga |
