Racord L, Prestomatic 2, filet exterior metric
Tip produs: PI99
Presiune maxima de lucru: 25 bar
Temperatura: -40⁰C ... +100⁰C
Racord cot, pentru tuburi de plastic, filet exterior metric
- constructie solida, compacta,
- debit de aer maximal (full air flow)
- datare si control de calitate individual pentru asigurarea trasabilitatii
- EN 45545-2, DIN 74324-1, DIN 73378, NF-R12-632-2
- Conformitate : ROHS
- Presiune maxima de lucru : 25 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 100 ⁰C
- Corp : alama
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Catalog racorduri push-in prestomatic 2 : Deschide

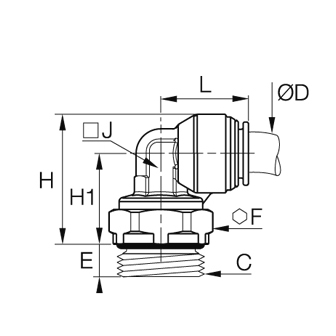

| Cod | ØD mm | C | E mm | F mm | H mm | H1 mm | J mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| C8UNPMB10M16 | 10 | M16x1,5 | 9,5 | 22 | 30,5 | 20,5 | 13 | 25 |
|
Adauga |
| C8UNPMB10M22 | 10 | M22x1,5 | 9,5 | 27 | 37 | 26 | 14 | 25 |
|
Adauga |
| C8UNPMB12M12 | 12 | M12x1,5 | 9 | 17 | 32 | 21 | 14 | 25 |
|
Adauga |
| C8UNPMB12M16 | 12 | M16x1,5 | 9,5 | 22 | 33 | 22 | 14 | 25 |
|
Adauga |
| C8UNPMB12M22 | 12 | M22x1,5 | 9,5 | 27 | 37 | 26 | 14 | 25 |
|
Adauga |
| C8UNPMB16M16 | 16 | M16x1,5 | 9,5 | 22 | 37 | 23,5 | 24 | 34 |
|
Adauga |
| C8UNPMB16M22 | 16 | M22x1,5 | 9,5 | 27 | 39 | 25,5 | 24 | 34 |
|
Adauga |
| C8UNPMB6M10 | 6 | M10x1 | 7,5 | 14 | 24 | 16 | 10 | 22 |
|
Adauga |
| C8UNPMB6M12 | 6 | M12x1,5 | 9 | 17 | 25,5 | 17 | 11 | 22 |
|
Adauga |
| C8UNPMB6M22 | 6 | M22x1,5 | 9,5 | 27 | 35 | 24 | 14 | 23 |
|
Adauga |
| C8UNPMB8M12 | 8 | M12x1,5 | 9 | 17 | 25,5 | 17 | 11 | 22 |
|
Adauga |
| C8UNPMB8M14 | 8 | M14x1,5 | 9,5 | 19 | 26,5 | 18 | 11 | 22 |
|
Adauga |
| C8UNPMB8M16 | 8 | M16x1,5 | 9,5 | 22 | 30 | 20 | 13 | 23 |
|
Adauga |
| C8UNPMB8M22 | 8 | M22x1,5 | 9,5 | 27 | 35 | 24 | 14 | 23 |
|
Adauga |
