Racord drept alama, trecere panou
Tip produs: 0116
Presiune maxima de lucru: 550 bar
Temperatura: -40⁰C ... +250⁰C
Vacuum: 755 mmHg
Fitting prelungitor de compresie din alama, trecere panou pentru tub sau teava.
- Conformitate : ROHS
- Presiune maxima de lucru : 550 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 250 ⁰C
- Vacuum : 755 mmHg
- Corp : alama
- Piulita : alama
- Piulita de blocare : alama
- Inel strangere : alama
- Catalog fitinguri compresie alama : Deschide

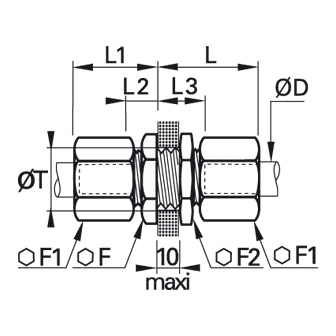

| Cod | ØD mm | F mm | F1 mm | F2 mm | L2 mm | L max mm | L1 max mm | L3 mm | ØT min mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0116 04 00 | 4 | 10 | 10 | 13 | 7 | 27 | 17 | 17 | 8,3 |
|
Adauga |
| 0116 05 00 | 5 | 13 | 12 | 14 | 7,5 | 28 | 18 | 17,5 | 10,3 |
|
Adauga |
| 0116 06 00 | 6 | 13 | 13 | 14 | 7,5 | 28 | 19 | 17,5 | 10,3 |
|
Adauga |
| 0116 08 00 | 8 | 14 | 14 | 17 | 7 | 29 | 20 | 17 | 12,3 |
|
Adauga |
| 0116 10 00 | 10 | 19 | 19 | 22 | 9 | 33 | 25 | 19 | 16,5 |
|
Adauga |
| 0116 12 00 | 12 | 22 | 22 | 22 | 9 | 33 | 25 | 19 | 18,5 |
|
Adauga |
| 0116 14 00 | 14 | 24 | 24 | 27 | 8 | 35 | 25 | 18 | 20,5 |
|
Adauga |
| 0116 15 00 | 15 | 24 | 24 | 24 | 8 | 35 | 25 | 18 | 20,5 |
|
Adauga |
| 0116 16 00 | 16 | 27 | 27 | 27 | 9,5 | 36 | 28 | 19,5 | 22,5 |
|
Adauga |
| 0116 18 00 | 18 | 27 | 30 | 30 | 10,5 | 40 | 30 | 20,5 | 24,5 |
|
Adauga |
| 0116 20 00 | 20 | 32 | 30 | 32 | 11 | 41 | 31 | 21 | 27,5 |
|
Adauga |
| 0116 22 00 | 22 | 36 | 36 | 36 | 11 | 42 | 32 | 21 | 30,5 |
|
Adauga |
