Racord adaptor cu stut, alama nichelata, filet exterior BSPT
Tip produs: 0934
Presiune maxima de lucru: 60 bar
Temperatura: -10⁰C ... +80⁰C
Racord alama nichelata cu filet exterior conic si stut tip bradut pentru furtun.
- Conformitate : ROHS
- Presiune maxima de lucru : 60 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Corp : alama nichelata
- Catalog racorduri adaptoare alama nichelata : Deschide

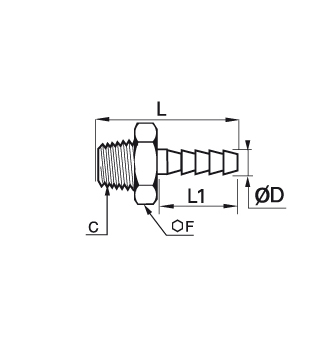

| Cod | ØD mm | C | F mm | L mm | L1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 0934 06 10 | 6 | R1/8 | 12 | 31,5 | 19 |
|
Adauga |
| 0934 06 13 | 6 | R1/4 | 14 | 35 | 19 |
|
Adauga |
| 0934 07 10 | 7 | R1/8 | 12 | 31,5 | 19 |
|
Adauga |
| 0934 07 13 | 7 | R1/4 | 14 | 35 | 19 |
|
Adauga |
| 0934 08 10 | 8 | R1/8 | 12 | 31,5 | 19 |
|
Adauga |
| 0934 08 13 | 8 | R1/4 | 14 | 35 | 19 |
|
Adauga |
| 0934 09 13 | 9 | R1/4 | 14 | 35 | 19 |
|
Adauga |
| 0934 09 17 | 9 | R3/8 | 17 | 35,5 | 19 |
|
Adauga |
| 0934 09 21 | 9 | R1/2 | 22 | 38,5 | 19 |
|
Adauga |
| 0934 10 10 | 10 | R1/8 | 12 | 32,5 | 20 |
|
Adauga |
| 0934 10 13 | 10 | R1/4 | 14 | 36 | 20 |
|
Adauga |
| 0934 10 17 | 10 | R3/8 | 17 | 36,5 | 20 |
|
Adauga |
| 0934 10 21 | 10 | R1/2 | 22 | 39,5 | 20 |
|
Adauga |
| 0934 12 13 | 12 | R1/4 | 14 | 36 | 20 |
|
Adauga |
| 0934 12 17 | 12 | R3/8 | 17 | 36,5 | 20 |
|
Adauga |
| 0934 12 21 | 12 | R1/2 | 22 | 39,5 | 20 |
|
Adauga |
| 0934 14 17 | 14 | R3/8 | 17 | 38,5 | 22 |
|
Adauga |
| 0934 14 21 | 14 | R1/2 | 22 | 41,5 | 22 |
|
Adauga |
| 0934 16 17 | 16 | R3/8 | 17 | 38,5 | 22 |
|
Adauga |
| 0934 16 21 | 16 | R1/2 | 22 | 41,5 | 22 |
|
Adauga |
| 0934 16 27 | 16 | R3/4 | 27 | 45 | 22 |
|
Adauga |
| 0934 17 21 | 17 | R1/2 | 22 | 43,5 | 24 |
|
Adauga |
| 0934 18 17 | 18 | R3/8 | 19 | 40,5 | 24 |
|
Adauga |
| 0934 18 21 | 18 | R1/2 | 22 | 43,5 | 24 |
|
Adauga |
| 0934 18 27 | 18 | R3/4 | 27 | 47 | 24 |
|
Adauga |
| 0934 20 21 | 20 | R1/2 | 22 | 43,5 | 24 |
|
Adauga |
