Racord adaptor cu stut, alama nichelata, filet exterior BSPP
Tip produs: 0191
Presiune maxima de lucru: 60 bar
Temperatura: -10⁰C ... +80⁰C
Racord alama nichelata cu filet exterior paralel si stut tip bradut pentru furtunuri.
- Conformitate : ROHS
- Presiune maxima de lucru : 60 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Corp : alama nichelata
- Catalog racorduri adaptoare alama nichelata : Deschide

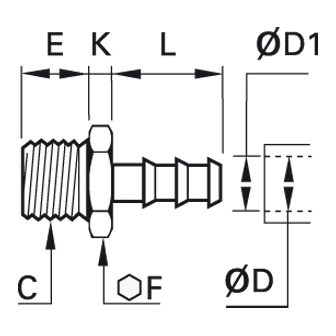

| Cod | ØD mm | ØD1 mm | C | E mm | F mm | K mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 0191 04 13 | 4 | 6 | G1/4 | 9,5 | 17 | 5 | 22,5 |
|
Adauga |
| 0191 07 13 | 7 | 9 | G1/4 | 9,5 | 17 | 5 | 22,5 |
|
Adauga |
| 0191 07 21 | 7 | 9 | G1/2 | 11 | 27 | 7 | 29,5 |
|
Adauga |
| 0191 10 13 | 10 | 12,2 | G1/4 | 9,5 | 17 | 5 | 22,5 |
|
Adauga |
| 0191 10 21 | 10 | 12,2 | G1/2 | 11 | 27 | 7 | 29,5 |
|
Adauga |
| 0191 13 13 | 13 | 15,2 | G1/4 | 9,5 | 17 | 5 | 22,5 |
|
Adauga |
| 0191 13 21 | 13 | 15,2 | G1/2 | 11 | 27 | 7 | 29,5 |
|
Adauga |
| 0191 16 21 | 16 | 18,5 | G1/2 | 11 | 27 | 7 | 36,5 |
|
Adauga |
