Grup preparare aer FRL compact, seria P31 Parker Global

Tip produs: P31CA
Parker

Presiune maxima intrare: 10 bar / 17 bar
Presiune maxima iesire: 8 bar
Temperatura: -10⁰C ... +65⁰C

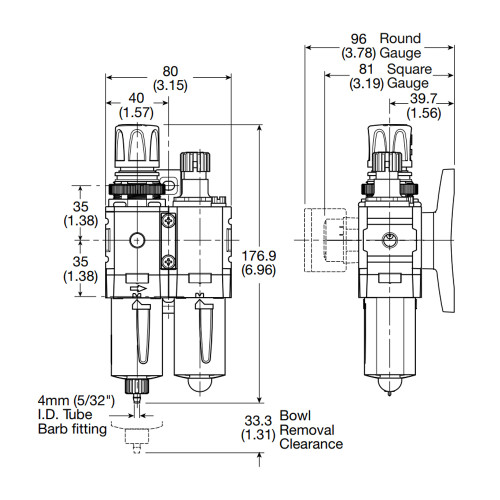

Grup de preparare aer Parker Global, tip FRL compact compus din ansamblu filtru-regulator + lubrificator (ungator) + manometru + sistem de prindere..

Racorduri: G1/4"
Element filtrare: 5µ
Presiune maxima intrare (pahare plastic): 10 bar
Presiune maxima intrare (pahare metal): 17 bar
Presiune maxima iesire: 8 bar
Temperatura: -10⁰C ... +65⁰C

Informatii de la producator

Global FRL Combos

Global FRL combos can be a 2 or 3-piece modular mounted particulate filter, regulator and mist style lubricator. These combos provide accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a range of air flows.

Parker's Global FRL Combos are a configured 2-piece or 3-piece unit consisting a filter/regulator and mist style lubricator or a filter, regulator and mist style lubricator as one part number. These combos provide accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. These fully featured Global FRL Combos can be easily configured to meet all of your air preparation needs.



Markets
• Machine Tools
• Misc. Industrial
• Misc. Manufacturing
• Air and Gas
• Appliances
• Factory Automation
• Entertainment Automation
• Molding
• Packaging Machinery
• Printing and Marking Equipment
• Vehicle Assembly Facilities
• Wearing Apparel
• Food and Beverage
• Misc. Processing



Features/Benefits
• Can be configured as 2 or 3-piece units
• High efficiency 5 micron element as standard
• Excellent water removal efficiency
• Robust but lightweight aluminum construction
• Positive bayonet latch to ensure correct & safe fitting
• Secondary pressure ranges
• Secondary aspiration plus balanced poppet provides quick response and accurate pressure regulation
• Proportional oil delivery over a wide range of air flow
• Fingertip ratchet control for precise oil drip rate adjustment



Applications
• To be used in combination with valves and cylinders
• To protect tools and cylinder against corrosion
• Reduce friction
• At the transfer point from workshop to machine
• In combination with tools for assembly and on the shop floor

Product Type F/R+L
Port Size 1/4 inch
Port Type BSPP
Bowl Type Poly, with Bowl Guard
Filter Element Type 5 micron
Drain Option Manual (F)
Drain Option None (L)
Pressure Regulator Type Relieving
Outlet Pressure Rating 8 bar
Pressure Gauge Type Square
Lubricator Option Oil Mist, Sight Dome
Mounting Option Wall Bracket
Combination FRL Units, Installation and Service Manuals (Revised 02-14-18) view
Global FRL product tutorial and demo view
0700P-8 Catalog Air Preparation Products, Global FRL Products\r view
Updated Parker Global and P3Y Air Preparation System, Catalog 0760P-1 (Revised 09/28/20). view
Global Air Preparation Product Poster, 2017 view
Air Preparation Systems - FRL, You need clean dry air! view
Pneumatic Calculator, 2018 view
  • Catalog gama Parker Global FRL si P3Y : Deschide
  • Catalog grupuri de preparare seria P31 Parker Global : Deschide
  • Catalog grupuri de preparare seria P31 Parker Global 2024 : Deschide
Cod Racord aer Debit dm³/s Grad de filtrare Purjare Pahar Stoc Cerere oferta
P31CA12GEMNTLNW G1/4 14 manuala plastic
Adauga
P31CA12GEBNTLNW G1/4 14 semi-automata plastic
Adauga
P31CA12MEMNTLNW G1/4 14 manuala metal
Adauga
