Flansa cu articulatie
Tip produs: MP4 - P1P
- accesoriu de prindere cilindru pneumatic compact ISO 21287
- pentru cilindri cu diametru piston : Ø20 mm ... Ø100 mm

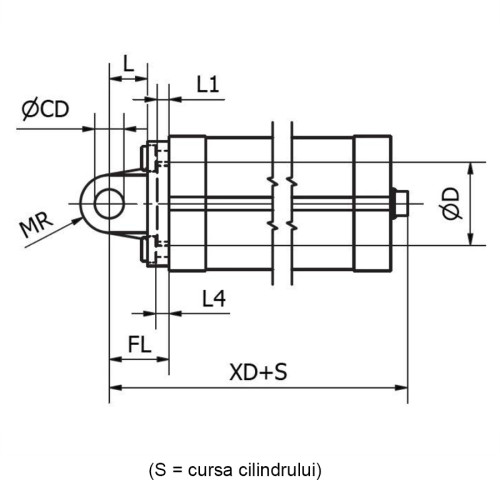

Flansa tip MP4 cu articulatie pentru montaj capac spate cilindriu pneumatic compact ISO 21287, seria P1P

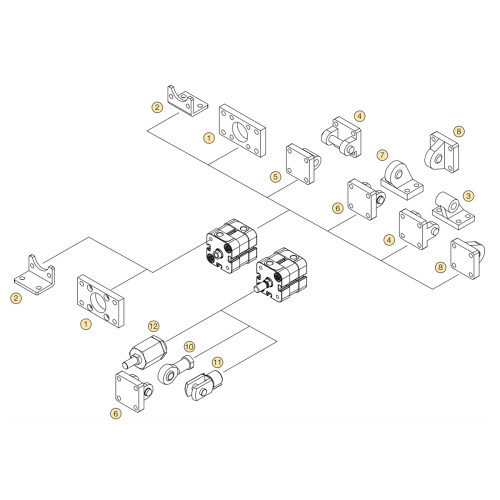

Se utilizeaza in combinatie cu flansa cu bolt tip MP2
| Cod | Diametru piston mm | ØCD mm | D mm | E mm | EW mm | FL mm | L mm | L1 mm | L4 mm | MR mm | XD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P1P-4HME | Ø20 | 8 | 12 | 34 | 16 | 20 | 14 | 4,5 | 63 |
|
Adauga | ||
| P1P-4JME | Ø25 | 8 | 12 | 38 | 16 | 20 | 14 | 4,5 | 3 | 8 | 65 |
|
Adauga |
| P1C-4KMEB | Ø32 | 10 | 30 | 47 | 26 | 22 | 12 | 6,5 | 6 | 10,5 | 73 |
|
Adauga |
| P1C-4LMEB | Ø40 | 12 | 35 | 52 | 28 | 25 | 16 | 5 | 5,5 | 12 | 77 |
|
Adauga |
| P1C-4MMEB | Ø50 | 12 | 40 | 65 | 32 | 27 | 16 | 5 | 6,5 | 12 | 80 |
|
Adauga |
| P1C-4NMEB | Ø63 | 16 | 45 | 78 | 40 | 32 | 21 | 5 | 6,5 | 16 | 89 |
|
Adauga |
| P1C-4PMEB | Ø80 | 16 | 45 | 95 | 50 | 36 | 22 | 5 | 10 | 16 | 100 |
|
Adauga |
| P1C-4QMEB | Ø100 | 20 | 55 | 115 | 60 | 41 | 27 | 5 | 10 | 20 | 118 |
|
Adauga |
