Cupla rapida tata extinsa, seria 86/87, cu filet exterior
Tip produs: 86/87VN

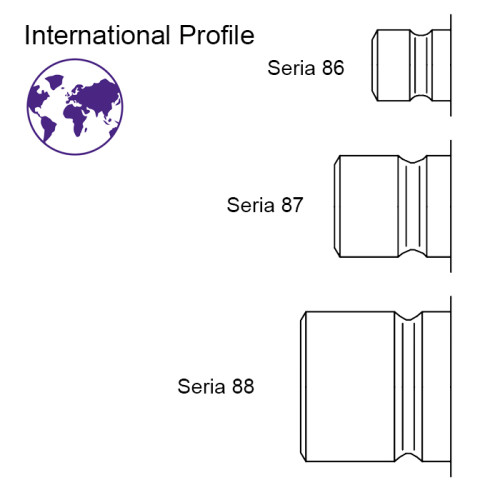

Profil International
Seria 86/87, Diametru nominal DN 6/9
straight-through
Presiune maxima de lucru: 15 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida tata extinsa (cu diferite lungimi), seria 86/87, alama, cu filet exterior, fara supapa de inchidere - cu trecere libera a fluidului (full flow)

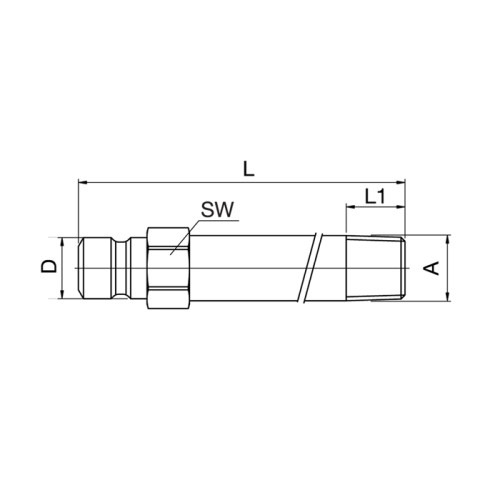

| Cod | DN mm | Seria | A | HEX mm | L mm | L1 mm | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 86VN1010MXX | 6 | 86 | R1/8 | 11 | 100 | 9 | 9,5 |
|
Adauga |
| 86VN1015MXXS_01 | 6 | 86 | R1/8 | 11 | 150 | 9 | 9,5 |
|
Adauga |
| 86VN1025MXX | 6 | 86 | R1/8 | 11 | 250 | 9 | 9,5 |
|
Adauga |
| 87VN1315MXX | 9 | 87 | R1/4 | 15 | 150 | 12 | 13,5 |
|
Adauga |
| 87VN1325MXX | 9 | 87 | R1/4 | 15 | 250 | 12 | 13,5 |
|
Adauga |
| 86VN1010MXXS_01 | 6 | 86 | G1/8 | 11 | 100 | 60 | 9,5 |
|
Adauga |
| 86VN1310MXX | 6 | 86 | G1/4 | 14 | 100 | 60 | 9,5 |
|
Adauga |
| 87VN1310MXX | 9 | 87 | G1/4 | 14 | 100 | 60 | 13,5 |
|
Adauga |
| 87VN1710MXX | 9 | 87 | G3/8 | 17 | 100 | 60 | 13,5 |
|
Adauga |
