Cupla rapida tata, seria 34, filet exterior

Parker's Series 34 is an industrial coupling with Atlas Copco-Profile.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. Series 34 is optimal for use with large pneumatic consumers due to the robust design and steel sleeve. The collar design minimizes damage to the valve body.

Markets:
- Machinery Construction
- Automotive

Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection

Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors

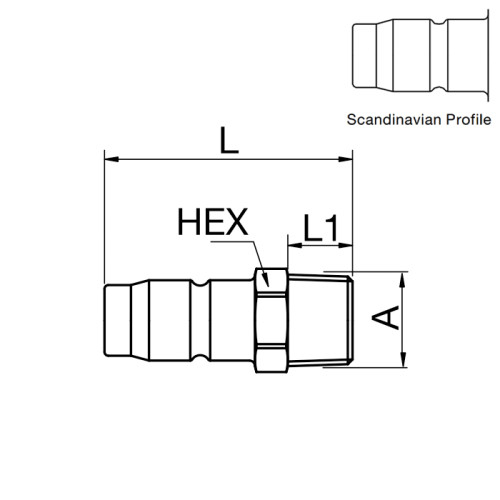

Diameter	10 nom
Valve Included	No
Version	Single Shut-Off
Length	46 mm
Hex Size	17 mm
Outside Diameter	na
Materials of Construction	Steel nickel plated
Seal Material	na
Minimum Operating Temperature	-20 °C
Maximum Operating Temperature	100 °C
Maximum Operating Pressure	35 bar
Flow Rate	2550 L/min

Customer information about test reports and inspection certificates	view
Instructions for use - Standard-Couplings Single Shut-Off, Double Shut-Off, Straight-Through and Dry-break Couplings	view
Datasheet Series 34 Single-Shut-Off Version made of Brass/Steel	view
Safety instructions - Quick Connect Couplings	view
Dust Caps - Correlation to the series	view
Instructions for use for explosive areas (ATEX)	view
Catalogue Page Parker Rectus Series 34	view
Statement to EC Machinery Directive 2006/42/EC	view
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications.	view
Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1.	view
Recommended values for the assembly of quick couplings to their connected lines	view
Overview of couplings for vacuum applications	view
Leakage rates for low-pressure couplings	view
Declaration of conformity - DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment	view

34SFAK13SXN
