Cupla rapida tata, seria 34, cu stut
Tip produs: 34SFTF
Profil Atlas Copco (Scandinavian)
Seria 33, Diametru nominal DN 10
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida tata, seria 34, otel nichelat, cu stut pentru furtun
Informatii de la producator
Quick Coupling with Atlas Copco Profile, Series 34
Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Atlas Copco profile. Available made of brass/steel.
Parker's Series 34 is an industrial coupling with Atlas Copco-Profile.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. Series 34 is optimal for use with large pneumatic consumers due to the robust design and steel sleeve. The collar design minimizes damage to the valve body.
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. Series 34 is optimal for use with large pneumatic consumers due to the robust design and steel sleeve. The collar design minimizes damage to the valve body.
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors

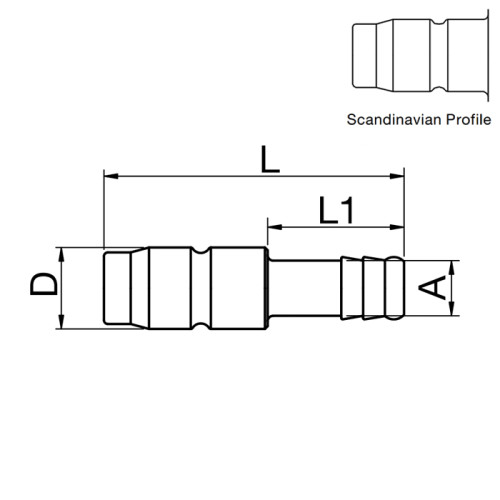

| Diameter | 10 nom |
| Valve Included | No |
| Version | Single Shut-Off |
| Length | 55 mm |
| Hex Size | na |
| Outside Diameter | 15 mm |
| Materials of Construction | Steel nickel plated |
| Seal Material | na |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 100 °C |
| Maximum Operating Pressure | 35 bar |
| Flow Rate | 2550 L/min |
| Customer information about test reports and inspection certificates | view |
| Instructions for use - Standard-Couplings Single Shut-Off, Double Shut-Off, Straight-Through and Dry-break Couplings | view |
| Datasheet Series 34 Single-Shut-Off Version made of Brass/Steel | view |
| Safety instructions - Quick Connect Couplings | view |
| Dust Caps - Correlation to the series | view |
| Instructions for use for explosive areas (ATEX) | view |
| Catalogue Page Parker Rectus Series 34 | view |
| Statement to EC Machinery Directive 2006/42/EC | view |
| Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. | view |
| Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1. | view |
| Recommended values for the assembly of quick couplings to their connected lines | view |
| Overview of couplings for vacuum applications | view |
| Leakage rates for low-pressure couplings | view |
| Declaration of conformity - DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment | view |
| 34SFTF10SXN | Part Solutions |
