Cupla rapida tata, seria 21, filet interior
Tip produs: 21SFIW
Profil standard European
Seria 21, Diametru nominal DN 5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

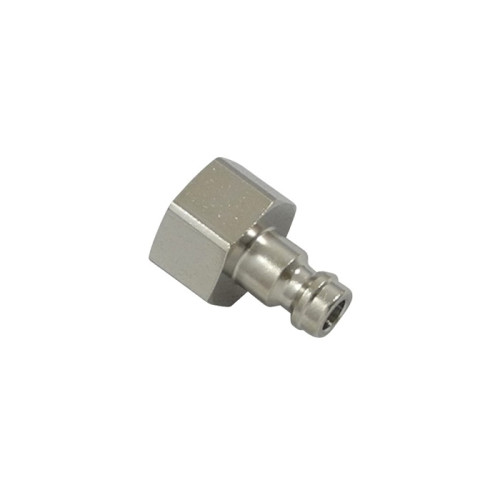

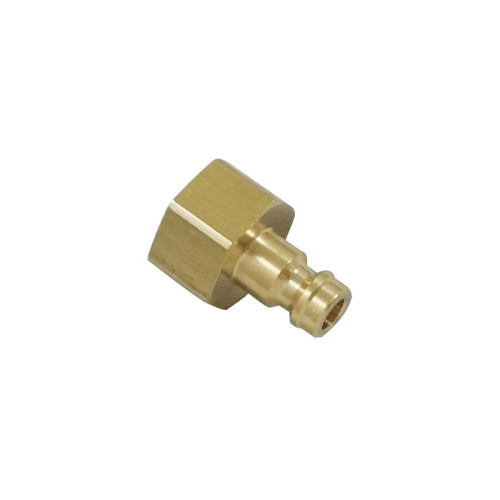

Cupla rapida tata, seria 21, alama sau alama nichelata, cu filet interior

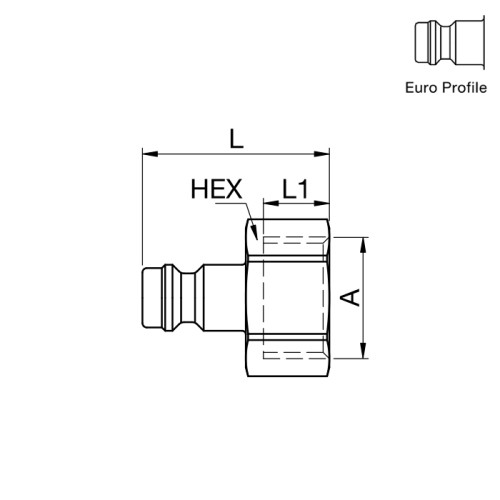

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 21SFIW10MXX | G1/8 | 14 | 25 | 8 | alama |
|
Adauga | |
| 21SFIW10MXN | 9086 21 10 | G1/8 | 14 | 25 | 8 | alama nichelata |
|
Adauga |
| 21SFIW13MXX | G1/4 | 17 | 25 | 9 | alama |
|
Adauga | |
| 21SFIW13MXN | 9086 21 13 | G1/4 | 17 | 25 | 9 | alama nichelata |
|
Adauga |
| 21SFIW17MXX | G3/8 | 19 | 26 | 9 | alama |
|
Adauga | |
| 21SFIW17MXN | G3/8 | 19 | 26 | 9 | alama nichelata |
|
Adauga | |
| 21SFIM12MXX | M12x1.5 | 17 | 27 | 10 | alama |
|
Adauga | |
| 21SFIM12MXN | M12x1.5 | 17 | 27 | 10 | alama nichelata |
|
Adauga | |
| 21SFIM14MXX | M14x1.5 | 17 | 27 | 10 | alama |
|
Adauga | |
| 21SFIM14MXN | M14x1.5 | 17 | 27 | 10 | alama nichelata |
|
Adauga |
