Cupla rapida tata, seria 21, de panou, cu stut
Tip produs: 21SFTS
Profil standard European
Seria 21, Diametru nominal DN 5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

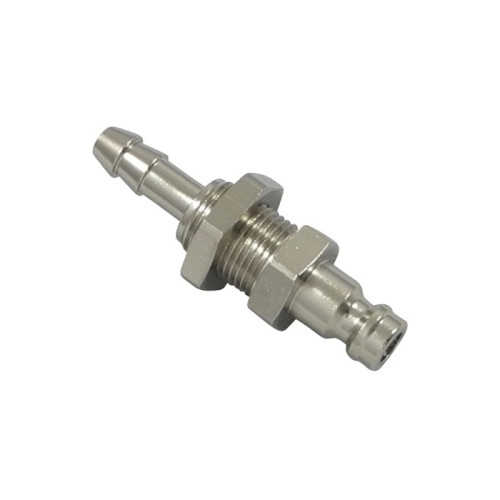

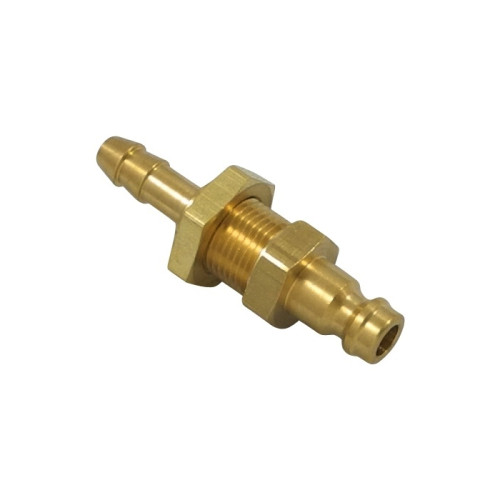

Cupla rapida tata, seria 21, alama sau alama nichelata, cu piulita de montare pe panou si stut pentru furtun

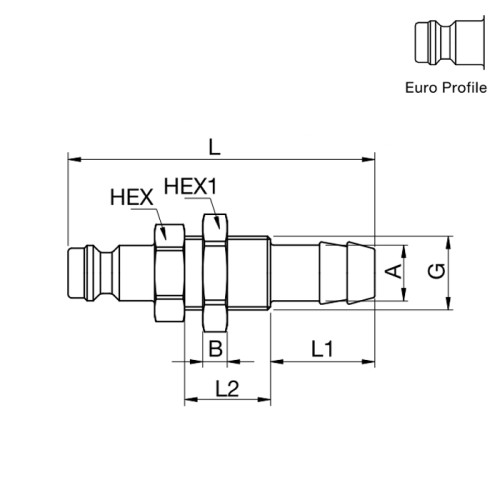

| Cod | Cod Legris | A | HEX mm | HEX1 mm | B mm | G | L mm | L1 mm | L2 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 21SFTS04MXX | 4 | 14 | 14 | 3 | M10x1 | 50 | 17 | 14 | alama |
|
Adauga | |
| 21SFTS04MXN | 9095 21 04 | 4 | 14 | 14 | 3 | M10x1 | 50 | 17 | 14 | alama nichelata |
|
Adauga |
| 21SFTS05MXX | 5 | 14 | 17 | 4 | M12x1 | 50 | 17 | 14 | alama |
|
Adauga | |
| 21SFTS05MXN | 5 | 14 | 17 | 4 | M12x1 | 50 | 17 | 14 | alama nichelata |
|
Adauga | |
| 21SFTS06MXX | 6 | 14 | 17 | 4 | M12x1 | 50 | 17 | 14 | alama |
|
Adauga | |
| 21SFTS06MXN | 9095 21 06 | 6 | 14 | 17 | 4 | M12x1 | 50 | 17 | 14 | alama nichelata |
|
Adauga |
| 21SFTS08MXX | 8 | 14 | 17 | 4 | M12x1 | 50 | 17 | 14 | alama |
|
Adauga | |
| 21SFTS08MXN | 9095 21 08 | 8 | 14 | 17 | 4 | M12x1 | 50 | 17 | 14 | alama nichelata |
|
Adauga |
