Cupla rapida tata, seria 200 cartridge

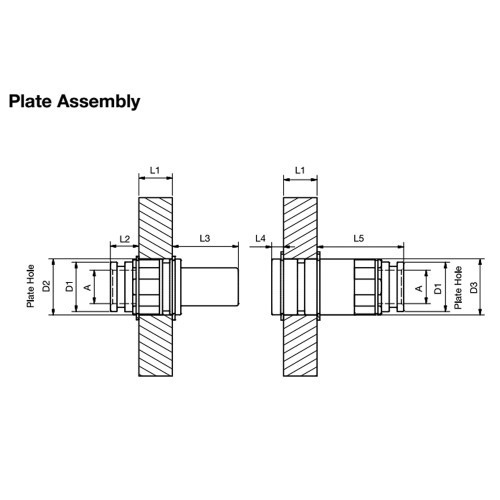

Parker's Coupling Series 200KLEK is a dry break coupling systems for block/plate assembly in sensitive environments, for example in analysis technology, in cooling systems, in transport systems and many applications with aggressive media.

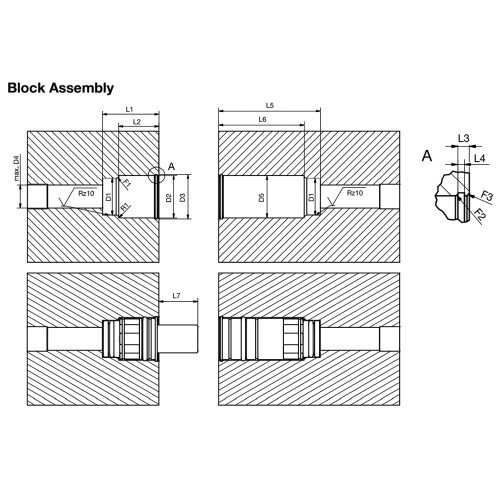

In the case of block assembly, a special sealing system ensures an optimum seal. Extremely low leakage rate and minimum dead space volume. There are absolutely no air pockets when coupling and a barely noticeable film of the medium being channelled on the valve bodies when uncoupling. Series 200KLEK stands out for its low coupling forces. The valve body is protected with collar design.

Markets:
- Machine tooling

- Electronic cooling

- Hydrogen

Features/Benefits:
- Dry break - no spillage and minimum dead space volume
- No air inclusion when connecting

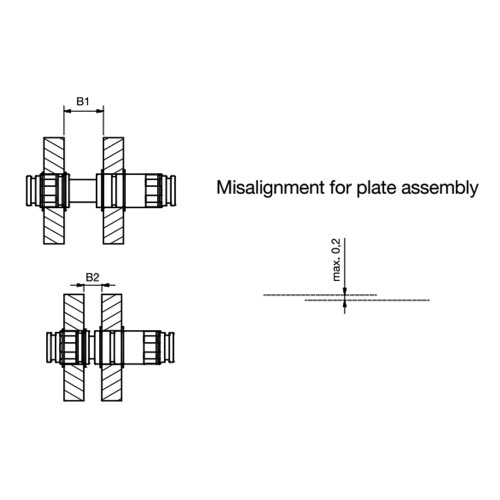

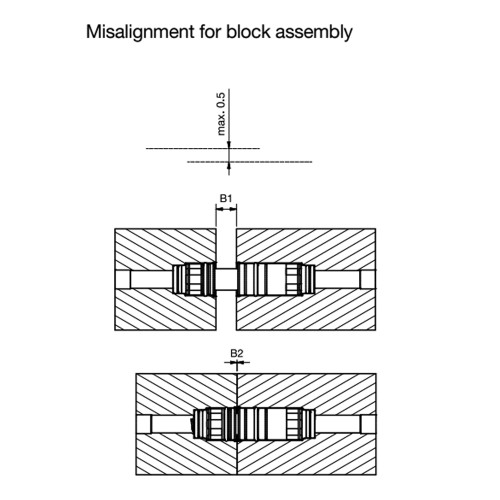

- Tolerates deviations in axial alignment when installing

Applications:
- Electronic cabinets
- Laser cooling
- Computer cooling

- Lithography machines

- Hydrogen

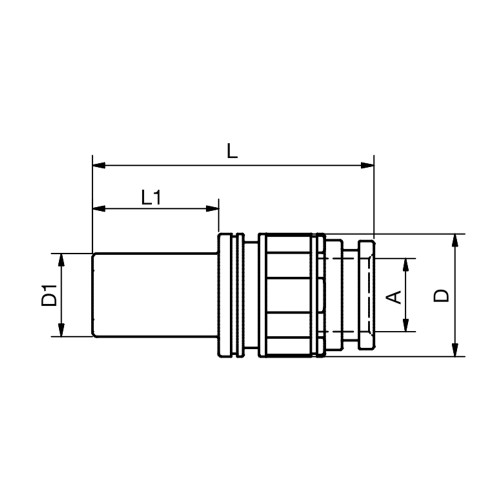

Diameter	3 mm (nominal)
Valve Included	Yes
Function	Flat-sealing
Diameter	11 mm
Materials of Construction	Stainless Steel AISI 316L
Seal Material	FKM
Minimum Operating Temperature	-15 °C
Maximum Operating Temperature	200 °C
Maximum Operating Pressure	15 bar
Application	Thermal Management

Catalogue Page Parker Rectus 200KL for Assembly	view
Quick Connect Couplings for Tempering and Cooling	view
Fluid Handling Solutions - push-in fittings, quick couplings and piping networks - for Tempering & Cooling.	view
Safety instructions Quick Couplings	view
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications.	view
Quick Coupling Systems for Medium- and High-PressurenParker Hannifin - High Pressure Connectors Europe	view
Discover with this video the Parker LPCE quick connection solutions for liquid cooling circuit required in electrical devices. This video shows how rigid piping, quick coupling and push-in fittings can meet the requirements of thermal management in the power generation applications, such as Lithium-ion (Li-ion) batteries, Energy Storage Systems (ESS), Inverters, Rectifiers, Converters, Power Conversion Systems (PCS), Medium Voltage Drives and Variable Frequency Drives.	view
Modular integrated coupling system on the basis of 200KL series technology.	view
Discover with this video the Parker LPCE quick connection solutions for Thermal Management in electronic applications.\rThis video shows how rigid piping, quick coupling and push-in fittings meet the requirements of liquid cooling circuits in electronic applications, such as Data Centres, Supercomputers, Electronic devices and Semiconductor production\r	view
Electrolyser Video - FCGE H2 Products	view

203KLIW08EVXEK
