Cupla rapida mama, seria 200 cartridge

Parker's Coupling Series 200KLEK is a dry break coupling systems for block/plate assembly in sensitive environments, for example in analysis technology, in cooling systems, in transport systems and many applications with aggressive media.

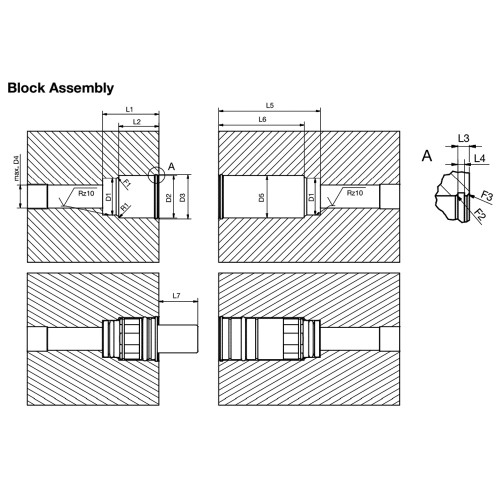

In the case of block assembly, a special sealing system ensures an optimum seal. Extremely low leakage rate and minimum dead space volume. There are absolutely no air pockets when coupling and a barely noticeable film of the medium being channelled on the valve bodies when uncoupling. Series 200KLEK stands out for its low coupling forces. The valve body is protected with collar design.

Markets:
- Machine tooling

- Electronic cooling

- Hydrogen

Features/Benefits:
- Dry break - no spillage and minimum dead space volume
- No air inclusion when connecting

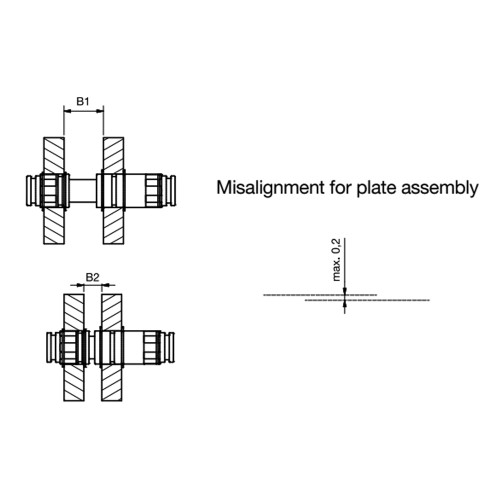

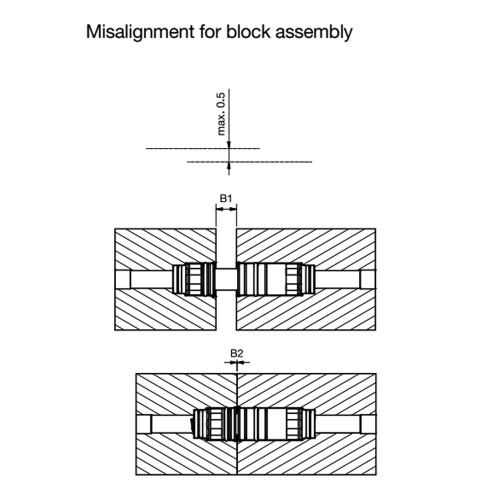

- Tolerates deviations in axial alignment when installing

Applications:
- Electronic cabinets
- Laser cooling
- Computer cooling

- Lithography machines

- Hydrogen

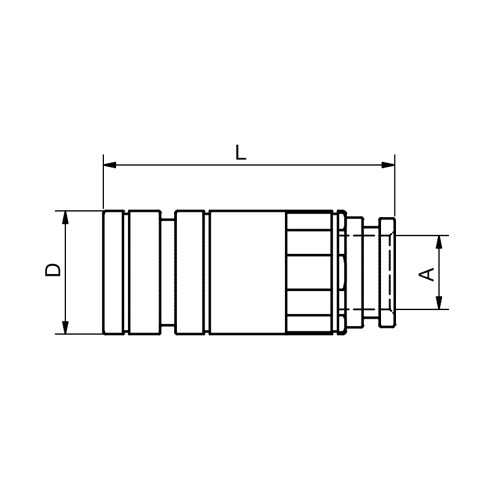

Diameter	3 mm (nominal)
Valve Included	Yes
Function	Flat-sealing
Diameter	11 mm
Materials of Construction	Stainless Steel AISI 316L
Seal Material	FKM
Minimum Operating Temperature	-15 °C
Maximum Operating Temperature	200 °C
Maximum Operating Pressure	15 bar
Application	Thermal Management
