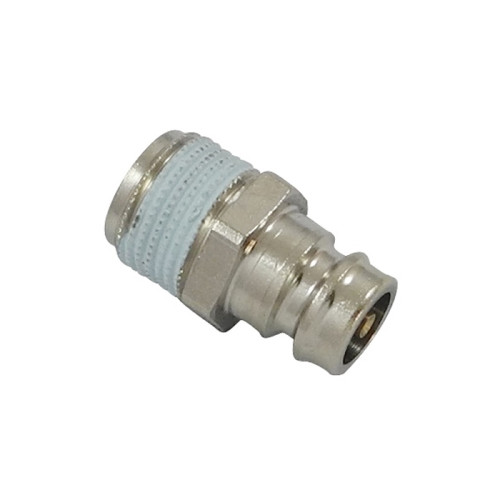

Cupla rapida tata, seria 10/11/12, cu filet exterior
Tip produs: 10/11/12SBA

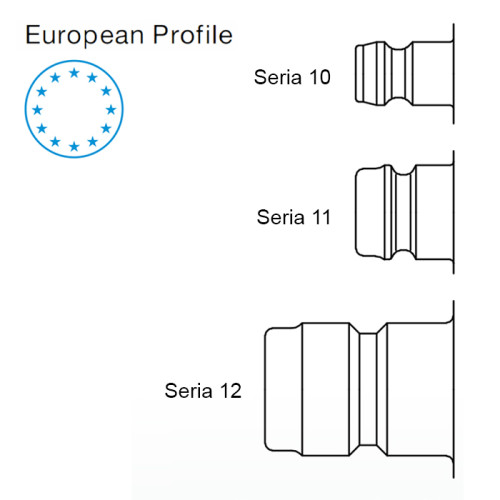

Profil European
Seria 10/11/12, Diametru nominal DN 6/9/13
double shut-off
Presiune maxima de lucru: 15 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida tata, seria 10/11/12, alama si garnituri FKM, cu filet exterior si supapa de inchidere dubla

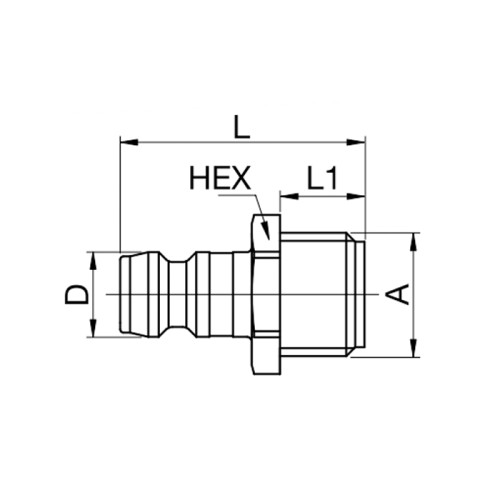

| Cod | DN mm | Seria | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 10SBAW13MVN | 6 | 10 | G1/4 | 15 | 29 | 12 | 9 | alama nichelata |
|
Adauga |
| 10SBAM14MVX | 6 | 10 | M14x1,5 | 15 | 29 | 12 | 9 | alama |
|
Adauga |
| 11SBAW13MVN | 9 | 11 | G1/4 | 15 | 31 | 12 | 13,5 | alama nichelata |
|
Adauga |
| 11SBAM16MVX | 9 | 11 | M16x1,5 | 17 | 30 | 12 | 13,5 | alama |
|
Adauga |
| 11SBAW17MVN | 9 | 11 | G3/8 | 17 | 30 | 12 | 13,5 | alama nichelata |
|
Adauga |
| 12SBAW26MVN | 13 | 12 | G3/4 | 27 | 51 | 16 | 19 | alama nichelata |
|
Adauga |
