Cupla rapida mama, seria 10/11/12, cu filet exterior
Tip produs: 10/11/12KBA

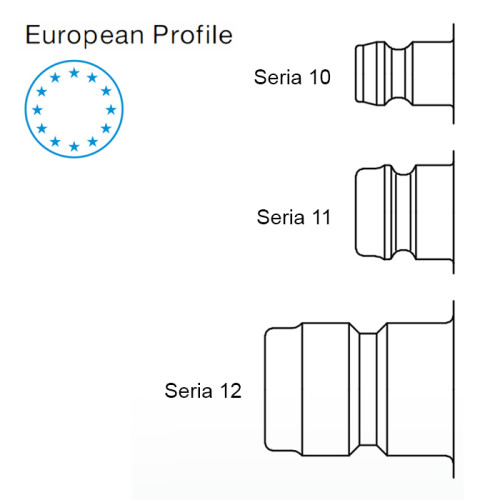

Profil European
Seria 10/11/12, Diametru nominal DN 6/9/13
double shut-off
Presiune maxima de lucru: 15 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida mama, seria 10/11/12, alama si garnituri FKM, cu filet exterior si supapa pentru inchidere dubla

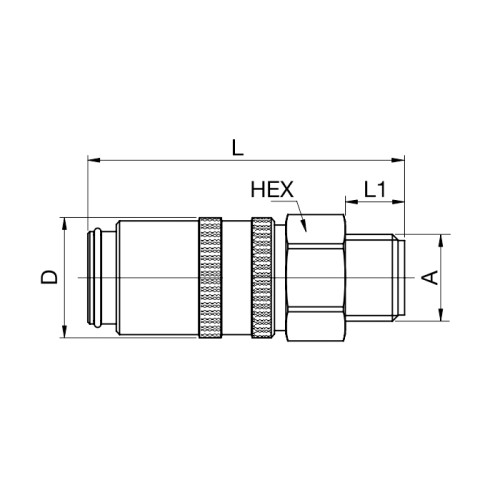

| Cod | DN mm | Seria | A | HEX mm | L mm | L1 mm | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 10KBAM14MVX | 6 | 10 | M14x1,5 | 17 | 48 | 9 | 18 |
|
Adauga |
| 10KBAW13MVX | 6 | 10 | G1/4 | 17 | 48 | 9 | 18 |
|
Adauga |
| 10KBAW17MVX | 6 | 10 | G3/8 | 19 | 48 | 9 | 18 |
|
Adauga |
| 11KBAW13MVX | 9 | 11 | G1/4 | 22 | 51,5 | 9 | 23 |
|
Adauga |
| 11KBAM16MVX | 9 | 11 | M16x1,5 | 22 | 51,5 | 9 | 23 |
|
Adauga |
| 11KBAW17MVX | 9 | 11 | G3/8 | 22 | 51,5 | 9 | 23 |
|
Adauga |
| 11KBAW21MVX | 13 | 11 | G1/2 | 22 | 51,5 | 12 | 23 |
|
Adauga |
| 12KBAW21MVX | 13 | 12 | G1/2 | 30 | 74 | 12 | 32 |
|
Adauga |
| 12KBAW26MVX | 13 | 12 | G3/4 | 30 | 78 | 16 | 32 |
|
Adauga |
