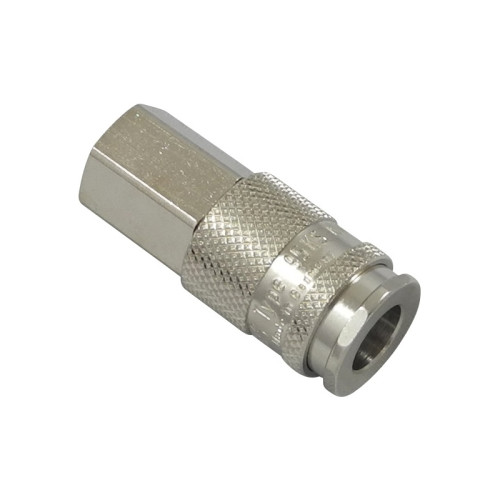

Cupla rapida mama, seria 95, filet interior
Tip produs: 95KSIW
Seria 95, Diametru nominal DN 7,4
cu sistem de blocare a deconectarii accidentale
breathing air
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 95, alama nichelata / AISI 303, cu filet interior, supapa pentru inchidere si sistem de blocare a deconectarii accidentale.

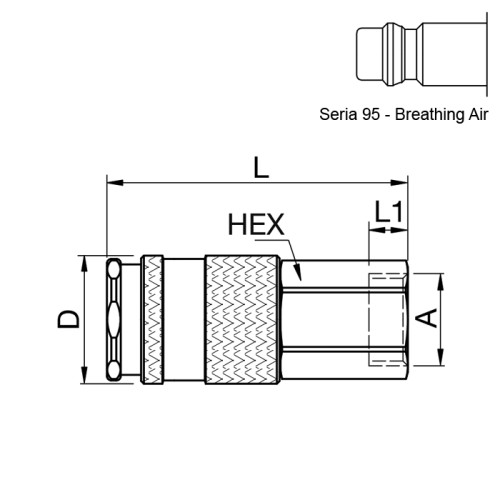

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 95KSIW13BPN | R1/4 | 19 | 56 | 10 | 23 | alama nichelata |
|
Adauga |
| 95KSIW13RPN | R1/4 | 19 | 56 | 10 | 23 | alama nichelata / AISI 303 |
|
Adauga |
| 95KSIW17BPN | R3/8 | 19 | 55 | 9 | 23 | alama nichelata |
|
Adauga |
| 95KSIW17RPN | R3/8 | 19 | 55 | 9 | 23 | alama nichelata / AISI 303 |
|
Adauga |
| 95KSIW21BPN | R1/2 | 24 | 58 | 12 | 23 | alama nichelata |
|
Adauga |
| 95KSIW21RPN | R1/2 | 24 | 58 | 12 | 23 | alama nichelata / AISI 303 |
|
Adauga |
