Cupla rapida mama, seria 95, filet exterior
Tip produs: 95KSAK
Seria 95, Diametru nominal DN 7,4
cu sistem de blocare a deconectarii accidentale
breathing air
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

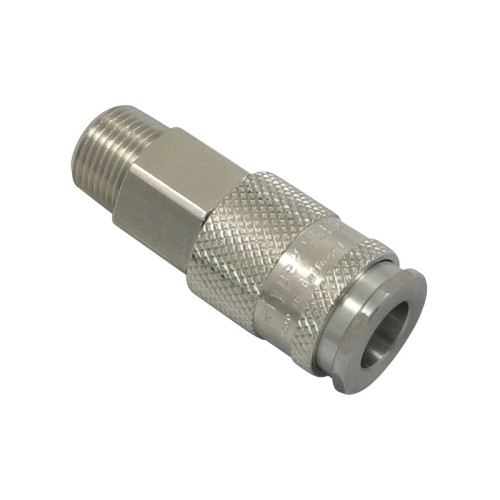

Cupla rapida mama, seria 95, alama nichelata / AISI 303, cu filet exterior, supapa pentru inchidere si sistem de blocare a deconectarii accidentale.

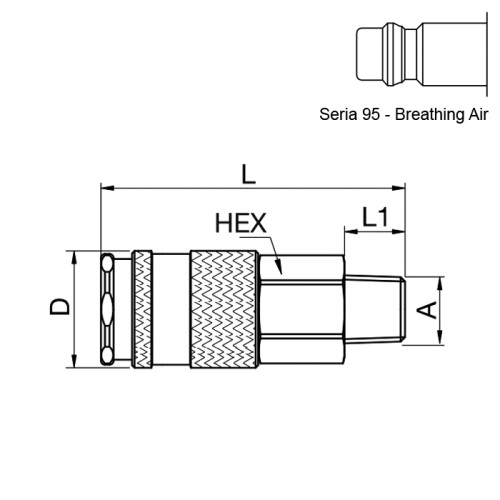

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 95KSAK13BPN | R1/4 | 19 | 61 | 12 | 23 | alama nichelata |
|
Adauga |
| 95KSAK13RPN | R1/4 | 19 | 61 | 12 | 23 | alama nichelata / AISI 303 |
|
Adauga |
| 95KSAK17BPN | R3/8 | 19 | 60 | 12 | 23 | alama nichelata |
|
Adauga |
| 95KSAK17RPN | R3/8 | 19 | 60 | 12 | 23 | alama nichelata / AISI 303 |
|
Adauga |
| 95KSAK21BPN | R1/2 | 22 | 61 | 17 | 23 | alama nichelata |
|
Adauga |
| 95KSAK21RPN | R1/2 | 22 | 61 | 17 | 23 | alama nichelata / AISI 303 |
|
Adauga |
