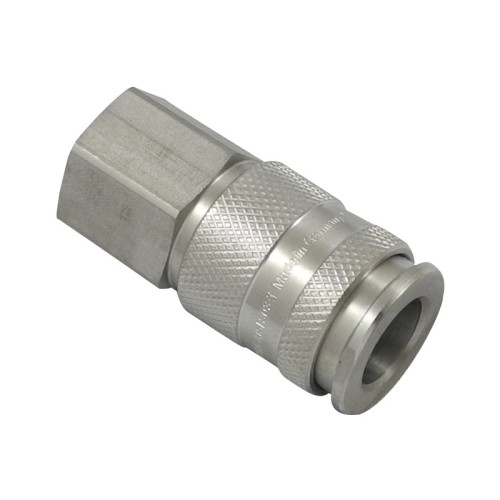

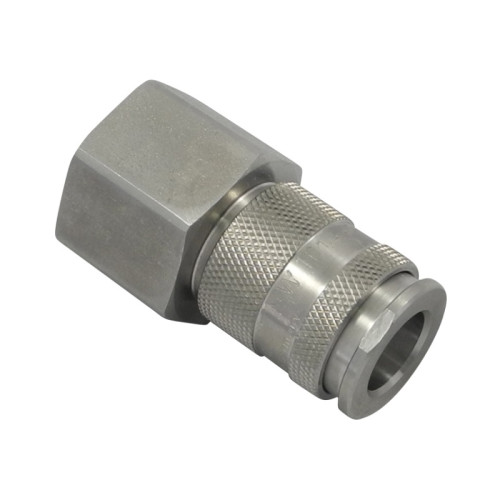

Cupla rapida mama, seria 27 inox, filet interior
Tip produs: 27KBIW-inox
Profil standard European
Seria 27 inox, Diametru nominal DN 10
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida mama, seria 27 inox, AISI 303 / AISI 316L, cu filet interior si supapa pentru inchidere dubla.

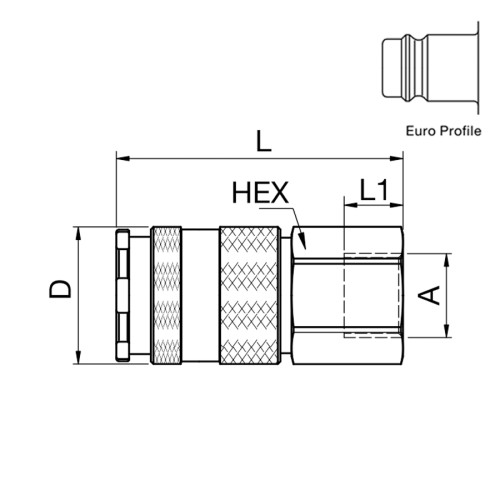

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 27KBIW17RVX | G3/8 | 24 | 56 | 11 | 27 | AISI 303 |
|
Adauga | |
| 27KBIW17EVX | 9214X27 17 | G3/8 | 24 | 56 | 11 | 27 | AISI 316L |
|
Adauga |
| 27KBIW21RVX | G1/2 | 24 | 56 | 12 | 27 | AISI 303 |
|
Adauga | |
| 27KBIW21EVX | 9214X27 21 | G1/2 | 24 | 56 | 12 | 27 | AISI 316L |
|
Adauga |
| 27KBIW26RVX | G3/4 | 32 | 56 | 16 | 27 | AISI 303 |
|
Adauga | |
| 27KBIW26EVX | 9214X27 27 | G3/4 | 32 | 56 | 16 | 27 | AISI 316L |
|
Adauga |
