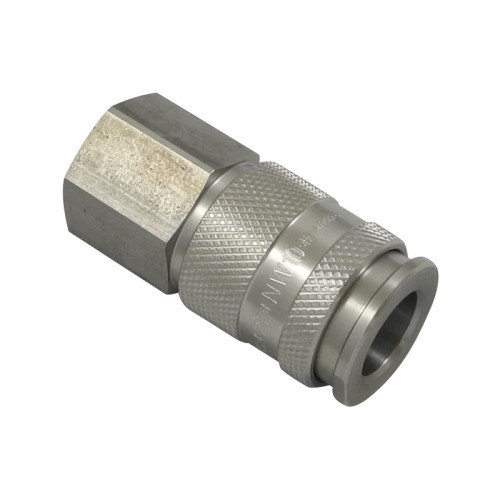

Cupla rapida mama, seria 27 inox, filet interior
Tip produs: 27KAIW-inox
Profil standard European
Seria 27 inox, Diametru nominal DN 10
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida mama, seria 27 inox, AISI 303 / AISI 316L, cu filet interior si supapa pentru inchidere simpla.

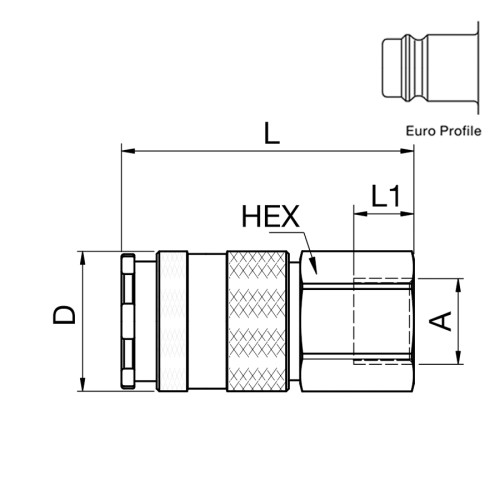

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 27KAIW17RVX | G3/8 | 24 | 56 | 11 | 27 | AISI 303 |
|
Adauga |
| 27KAIW17EVX | G3/8 | 24 | 56 | 11 | 27 | AISI 316L |
|
Adauga |
| 27KAIW21RVX | G1/2 | 24 | 56 | 12 | 27 | AISI 303 |
|
Adauga |
| 27KAIW21EVX | G1/2 | 24 | 56 | 12 | 27 | AISI 316L |
|
Adauga |
| 27KAIW26RVX | G3/4 | 32 | 60 | 16 | 27 | AISI 303 |
|
Adauga |
| 27KAIW26EVX | G3/4 | 32 | 60 | 16 | 27 | AISI 316L |
|
Adauga |
