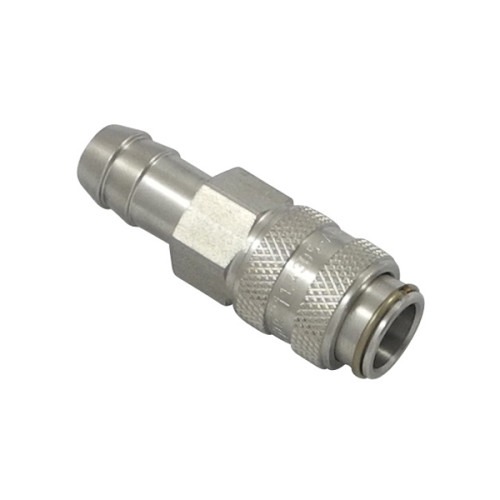

Cupla rapida mama, seria 21 inox, cu stut
Tip produs: 21KBTF-inox
Profil standard European
Seria 21 inox, Diametru nominal DN 5
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida mama, seria 21 inox, AISI 303 / AISI 316L, cu stut pentru furtun si supapa pentru inchidere dubla.

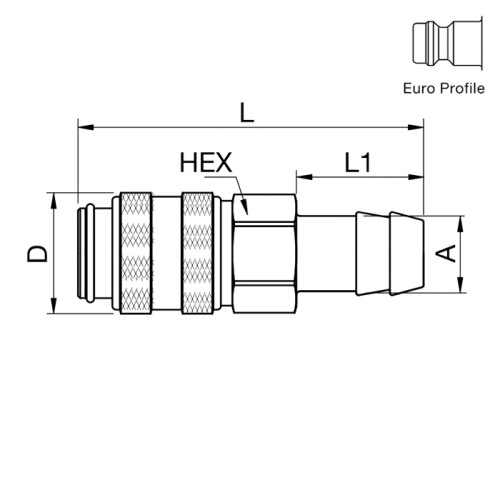

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 21KBTF06RVX | 6 | 14 | 46 | 17 | 16 | AISI 303 |
|
Adauga |
| 21KBTF06EVX | 6 | 14 | 46 | 17 | 16 | AISI 316L |
|
Adauga |
| 21KBTF08RVX | 8 | 14 | 46 | 17 | 16 | AISI 303 |
|
Adauga |
| 21KBTF08EVX | 8 | 14 | 46 | 17 | 16 | AISI 316L |
|
Adauga |
| 21KBTF09RVX | 9 | 14 | 46 | 17 | 16 | AISI 303 |
|
Adauga |
| 21KBTF09EVX | 9 | 14 | 46 | 17 | 16 | AISI 316L |
|
Adauga |
| 21KBTF10RVX | 10 | 14 | 46 | 17 | 16 | AISI 303 |
|
Adauga |
| 21KBTF10EVX | 10 | 14 | 46 | 17 | 16 | AISI 316L |
|
Adauga |
