Cupla rapida mama, seria 21, de panou, cu stut
Tip produs: 21KBTS
Profil standard European
Seria 21, Diametru nominal DN 5
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

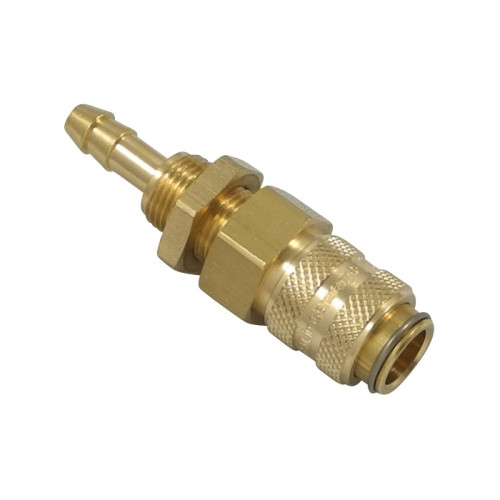

Cupla rapida mama, seria 21, alama sau alama nichelata, cu piulita de montare pe panou, stut pentru furtun si supapa pentru inchidere dubla.
Informatii de la producator
Loading product details...

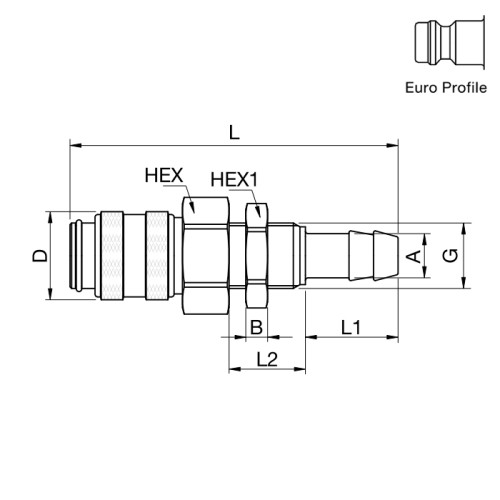

| Cod | Cod Legris | A | HEX mm | HEX1 mm | B mm | G | L mm | L1 mm | L2 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 21KBTS04MPX | 4 | 12 | 12 | 4 | M10x1 | 60 | 17 | 14 | 16 | alama |
|
Adauga | |
| 21KBTS04MPN | 9226 21 04 | 4 | 12 | 12 | 4 | M10x1 | 60 | 17 | 14 | 16 | alama nichelata |
|
Adauga |
| 21KBTS05MPX | 5 | 17 | 17 | 4 | M12x1 | 60 | 17 | 14 | 16 | alama |
|
Adauga | |
| 21KBTS05MPN | 5 | 17 | 17 | 4 | M12x1 | 60 | 17 | 14 | 16 | alama nichelata |
|
Adauga | |
| 21KBTS06MPX | 6 | 17 | 17 | 4 | M12x1 | 60 | 17 | 14 | 16 | alama |
|
Adauga | |
| 21KBTS06MPN | 9226 21 06 | 6 | 17 | 17 | 4 | M12x1 | 60 | 17 | 14 | 16 | alama nichelata |
|
Adauga |
| 21KBTS08MPX | 8 | 17 | 17 | 4 | M12x1 | 60 | 17 | 14 | 16 | alama |
|
Adauga | |
| 21KBTS08MPN | 9226 21 08 | 8 | 17 | 17 | 4 | M12x1 | 60 | 17 | 14 | 16 | alama nichelata |
|
Adauga |
| 21KBTS09MPX | 9 | 17 | 19 | 4 | M14x1 | 60 | 17 | 14 | 16 | alama |
|
Adauga | |
| 21KBTS09MPN | 9 | 17 | 19 | 4 | M14x1 | 60 | 17 | 14 | 16 | alama nichelata |
|
Adauga | |
| 21KBTS10MPX | 10 | 17 | 19 | 4 | M14x1 | 60 | 17 | 14 | 16 | alama |
|
Adauga | |
| 21KBTS10MPN | 10 | 17 | 19 | 4 | M14x1 | 60 | 17 | 14 | 16 | alama nichelata |
|
Adauga |
