Cupla rapida mama, seria 20, de panou, cu racord cu strangere
Tip produs: 20KBKS
Profil standard European
Seria 20, Diametru nominal DN 2,7
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

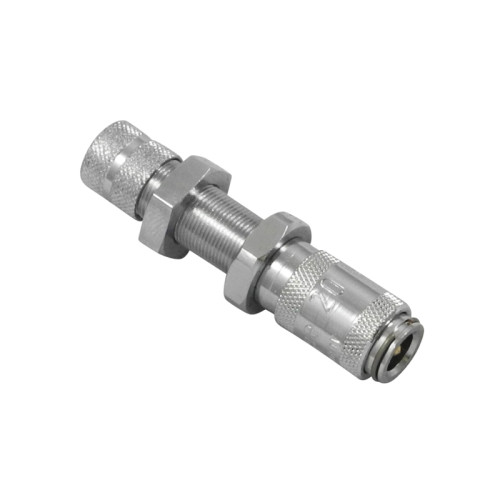

Cupla rapida mama, seria 20, alama sau alama nichelata, cu piulita de montare pe panou, racord cu strangere pe con cu piulita randalinata si supapa pentru inchidere dubla.
Informatii de la producator
Quick Coupling, European Profile, ND 2.7 (Series 20)
Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.
Parker’s Series 20 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. High flow rate despite small dimensions.
Markets:
- Industrial
- Life Sciences
- Medical technology
- Chemistry pharmacybr/>- Electronics and energy management
- Transportation
- Machinery construction
- Automotive
- Process
Features/Benefits:
- Mini Industrial coupling
- Single hand operation for easy and fast connection
- European profile is the most representative profile worldwide
Markets:
- Industrial
- Life Sciences
- Medical technology
- Chemistry pharmacybr/>- Electronics and energy management
- Transportation
- Machinery construction
- Automotive
- Process
Features/Benefits:
- Mini Industrial coupling
- Single hand operation for easy and fast connection
- European profile is the most representative profile worldwide
| Brand | Parker |
| Brand | Rectus |
| Division | Low Pressure Connectors Europe Division |
| Industry | General Industrial |
| Industry | Healthcare & Life Sciences |
| Application | Food & Beverages |
| Application | Industrial Machinery |
| Application | Medical |
| Application | Pharma |
| Technology | Fluid & Gas Handling |
| Product Type | Pneumatic Quick Couplings |
| Product Style | Quick-Connect |
| Product Series | Series 20 |
| Maximum Operating Pressure | up to 35 bar |
| Maximum Operating Pressure | up to 507 psi |
| Connection Type | Tube Panel monted, without spring guard |
| Connection Size | 3x4 mm |
| Maximum Operating Temperature | 100 °C |
| Maximum Operating Temperature | 212 °F |
| Minimum Operating Temperature | -20 °C |
| Minimum Operating Temperature | -4 °F |
| For Fluid Type | Water |
| For Fluid Type | Inert Gas |
| For Fluid Type | Chemical Fluids |
| For Fluid Type | Gases |
| Flow Rate | 1.2 L/min (water) |
| Body Material | Brass |
| Seal Material | NBR |
| Sleeve Material | Brass |
| Interchange Type | European Profile |
| Coupling Half | Coupler |
| Compatible Fitting | Series 20 Plug |
| Valve Type | Standard Valve |
| Function | Double Shut-Off |
| Operation Type | Sleeve |
| Plating Type | Without Surface Treatment |
| Diameter | 2.7 mm (nominal) |
| Hex Size | 12 mm (external) |
| Specifications Met | ATEX |
| Specifications Met | RoHS |
| Weight | 0.018 kg |
| Length | 45 mm |
| Quantity per Box | 5 |
| Region of Origin | Germany |
| Shape | Straight |
| Valve Included | Yes |
| Customer information about test reports and inspection certificates | view |
| Safety instructions - Quick Connect Couplings | view |
| Datasheet Series 20 Single-Shut-Off Version | view |
| Catalogue Page Parker Rectus Series 20 Brass/Steel | view |
| Instructions for use for explosive areas (ATEX) | view |
| Catalogue Page Parker Rectus Series 20 Stainless Steel | view |
| Datasheet Series 20 Double-Shut-Off Version | view |
| Statement to EC Machinery Directive 2006/42/EC | view |
| Declaration of conformity - DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment | view |
| Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. | view |
| Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1. | view |
| 20KBKS04MPX | Part Solutions |

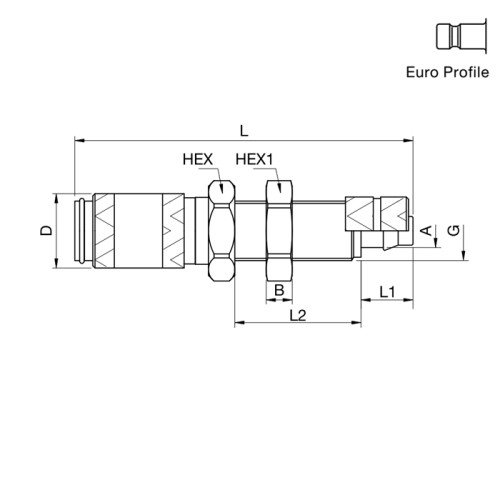

| Cod | A | HEX mm | HEX1 mm | G | L mm | L1 mm | L2 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20KBKS04MPX | 3x4 | 12 | 11 | M7x0,5 | 45 | 7 | 17 | 10 | alama |
|
Adauga |
| 20KBKS04MPN | 3x4 | 12 | 11 | M7x0,5 | 45 | 7 | 17 | 10 | alama nichelata |
|
Adauga |
| 20KBKS05MPX | 3x5 | 12 | 11 | M7x0,5 | 45 | 7 | 17 | 10 | alama |
|
Adauga |
| 20KBKS05MPN | 3x5 | 12 | 11 | M7x0,5 | 45 | 7 | 17 | 10 | alama nichelata |
|
Adauga |
| 20KBKS06MPX | 4x6 | 12 | 12 | M8x0,5 | 45 | 7 | 17 | 10 | alama |
|
Adauga |
| 20KBKS06MPN | 4x6 | 12 | 12 | M8x0,5 | 45 | 7 | 17 | 10 | alama nichelata |
|
Adauga |
