Cupla rapida mama, seria 14KE, filet exterior

Tip produs: 14KEAK
Parker Rectus

Profil ARO
Seria 14KE safety, Diametru nominal DN 5,5

  self-venting system   self-venting system

Presiune maxima de lucru: 12 bar
Temperatura: -20⁰C ... +60⁰C

Cupla rapida mama, seria 14KE, alama nichelata, cu filet exterior, supapa pentru inchidere simpla si sistem de deconectare in siguranta in 2 pasi.

Pasul 1 - prin impingerea mansonului in directie opusa cuplei tata (sageata nr. 1) se face depresurizarea circuitului si se mentine blocata cupla tata.

Pasul 2 - dupa depresurizare, tragerea mansonului in directie opusa (sageata nr. 2) deblocheaza cupla tata.

Cuple tata compatibile: seria 22 - otel nichelat



Informatii de la producator

Premium Safety Quick Coupling with a Self-Venting System, Series 14

Premium self-venting quick coupling system with nominal diameter 5.5 for pneumatic applications up to 12 bar. Coupling system with ARO profile. Available made of brass/steel.

Parker's Premium Safety Quick Coupling Series 14 with a self-venting system according to ISO C. The self-venting takes place during disconnection – no risk of pressurized hoses being tossed around. When the sleeve is pulled back, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by operating the sleeve again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place. The plastic sleeve does not scratch working surfaces.

The right plug for self-venting series 14 can be found under series 22.

Markets:
- Machinery Construction
- Automotive

Features/Benefits:
- Safety Coupling with self-venting mechanism according to ISO C
- No whiplash effect due to the self-venting which takes place during disconnection
- Plastic sleeve - no scratching of the working surfaces

Applications:
- Pneumatic Tools
- Pneumatic Airline Systems
- Assembly Lines
Diameter 5,5 nom
Valve Included Yes
Version Self-Venting
Length 58 mm
Hex Size 22 mm
Outside Diameter 31 mm
Materials of Construction Brass nickel plated
Seal Material NBR
Minimum Operating Temperature -20 °C
Maximum Operating Temperature 60 °C
Maximum Operating Pressure 12 bar
Application Pneumatic
Safety Features Self-Venting
Datasheet Series 14 Self-Venting view
Instructions for use - Self-Venting Couplings Series 14KE, 24KE, 26KE view
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. view
Catalogue Page Parker Rectus Series 14 Self-Venting view
14KEAK13MPN Part Solutions
  • Catalog cuple rapide Parker-Rectus : Deschide
  • Catalog cuple rapide Parker-Rectus seria 14KE safety : Deschide

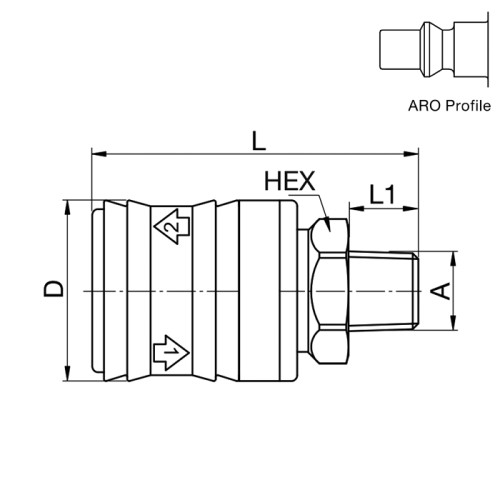

Cod A HEX mm L mm L1 mm ØD mm Stoc Cerere oferta
14KEAK13MPN R1/4 22 58 9 31
Adauga
14KEAK17MPN R3/8 22 58 9 31
Adauga
14KEAK21MPN R1/2 24 63 12 31
Adauga
