Cupla rapida tata, seria 22, cu stut

Tip produs: 14KE-22SFTF
Parker Rectus

Profil ARO
Seria 22, Diametru nominal DN 5,5

  single shut-off    single shut-off

Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

Cupla rapida mama, seria 22, otel nichelat, cu stut pentru furtun

Cuple mama compatibile: seria 14, seria 14KE, seria 22



Informatii de la producator

Premium Quick Coupling with ARO Profile, Series 22

Premium quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ARO profile. Available made of brass/steel.

Parker's Premium Quick Coupling Series 22 is a coupling system with ARO profile which is most common in Benelux countries, Switzerland as well as in South Africa. The series 22 is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. It's especially suited to use with gaseous media in industry. The steel sleeve counters oscillating forces and the high insertion depth is guaranteed by an optimized plug guide.

Markets:
- Machinery Construction

Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Steel sleeve counters oscillating forces
- Single-hand operation for easy and fast connection

Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Division Low Pressure Connectors Europe Division
Diameter 5,5 nom
Valve Included No
Version Single Shut-Off
Length 49 mm
Hex Size na
Outside Diameter 12 mm
Seal Material na
Minimum Operating Temperature -20 °C
Maximum Operating Temperature 100 °C
Maximum Operating Pressure 35 bar
Flow Rate 800 L/min
Customer information about test reports and inspection certificates view
Instructions for use - Standard-Couplings Single Shut-Off, Double Shut-Off, Straight-Through and Dry-break Couplings view
Instructions for use for explosive areas (ATEX) view
Safety instructions - Quick Connect Couplings view
Dust Caps - Correlation to the series view
Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1. view
Catalogue Page Parker Rectus Series 22 view
Statement to EC Machinery Directive 2006/42/EC view
Leakage rates for low-pressure couplings view
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. view
Recommended values for the assembly of quick couplings to their connected lines view
Datasheet Series 22 Single-Shut-Off Version made of Brass/Steel view
Declaration of conformity - DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment view
22SFTF06SXN Part Solutions
  • Catalog cuple rapide Parker-Rectus : Deschide
  • Catalog cuple rapide Parker-Rectus seria 14KE : Deschide

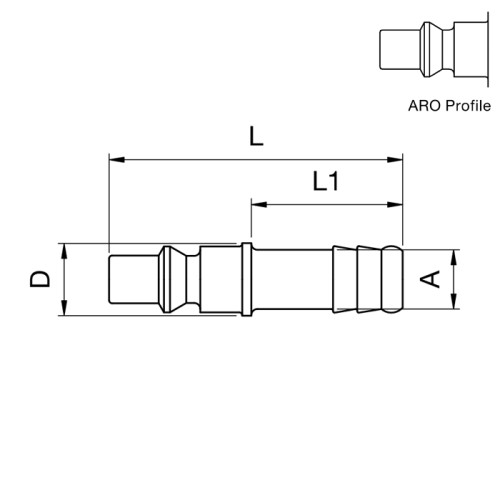

Cod Cod Legris A L mm L1 mm ØD mm Stoc Cerere oferta
22SFTF06SXN 9085 22 06 6 49 25 12
Adauga
22SFTF08SXN 9085 22 08 8 49 25 12
Adauga
22SFTF09SXN 9085 22 09 9 49 25 12
Adauga
22SFTF10SXN 9085 22 10 10 49 25 12
Adauga
22SFTF13SXN 9085 22 13 13 49 25 15
Adauga
