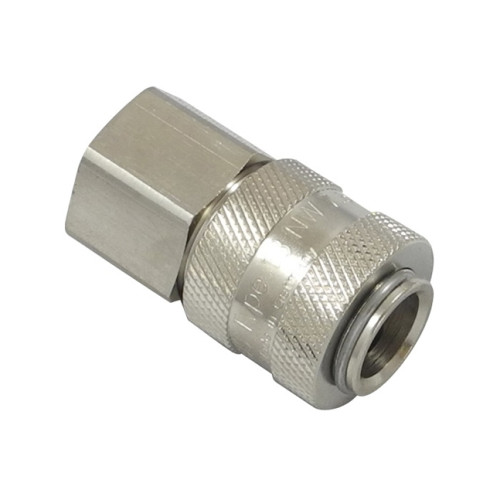

Cupla rapida mama, seria 13, filet interior
Tip produs: 13KAIW
Profil industrial Japan (standard Asia)
Seria 13, Diametru nominal DN 7,5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 13, alama, cu filet interior si supapa pentru inchidere simpla.

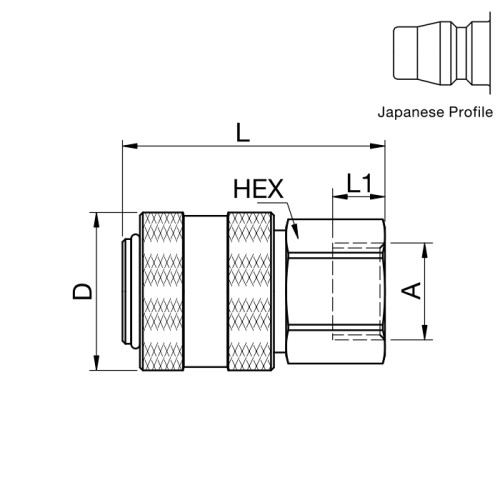

| Cod | A | Cod Legris | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 13KAIW13MPX | G1/4 | 22 | 45 | 9 | 27 | alama |
|
Adauga | |
| 13KAIW13MPN | G1/4 | 9114 13 13 | 22 | 45 | 9 | 27 | alama nichelata |
|
Adauga |
| 13KAIW17MPX | G3/8 | 22 | 45 | 9 | 27 | alama |
|
Adauga | |
| 13KAIW17MPN | G3/8 | 9114 13 17 | 22 | 45 | 9 | 27 | alama nichelata |
|
Adauga |
| 13KAIW21MPX | G1/2 | 22 | 48 | 12 | 27 | alama |
|
Adauga | |
| 13KAIW21MPN | G1/2 | 9114 13 21 | 22 | 48 | 12 | 27 | alama nichelata |
|
Adauga |
