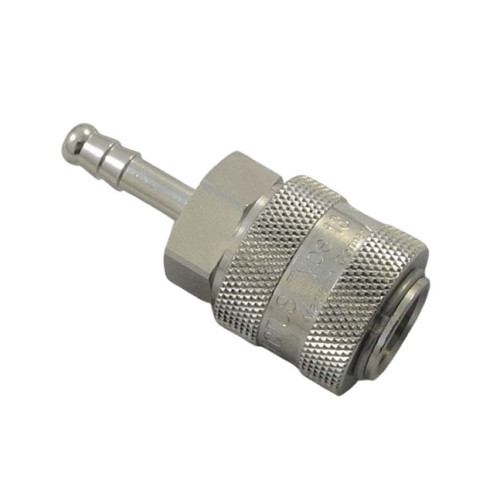

Cupla rapida mama, seria 13, cu stut
Tip produs: 13KATF
Profil industrial Japan (standard Asia)
Seria 13, Diametru nominal DN 7,5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 13, alama, cu stut pentru furtun si supapa pentru inchidere simpla.

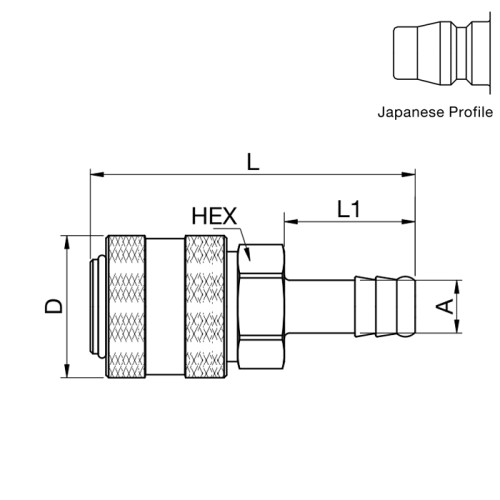

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 13KATF06MPX | 6 | 21 | 62 | 25 | 27 | alama |
|
Adauga | |
| 13KATF06MPN | 9123 13 06 | 6 | 21 | 62 | 25 | 27 | alama nichelata |
|
Adauga |
| 13KATF08MPX | 8 | 21 | 62 | 25 | 27 | alama |
|
Adauga | |
| 13KATF08MPN | 9123 13 08 | 8 | 21 | 62 | 25 | 27 | alama nichelata |
|
Adauga |
| 13KATF10MPX | 10 | 21 | 62 | 25 | 27 | alama |
|
Adauga | |
| 13KATF10MPN | 9123 13 10 | 10 | 21 | 62 | 25 | 27 | alama nichelata |
|
Adauga |
| 13KATF13MPX | 13 | 21 | 62 | 25 | 27 | alama |
|
Adauga | |
| 13KATF13MPN | 9123 13 13 | 13 | 21 | 62 | 25 | 27 | alama nichelata |
|
Adauga |
