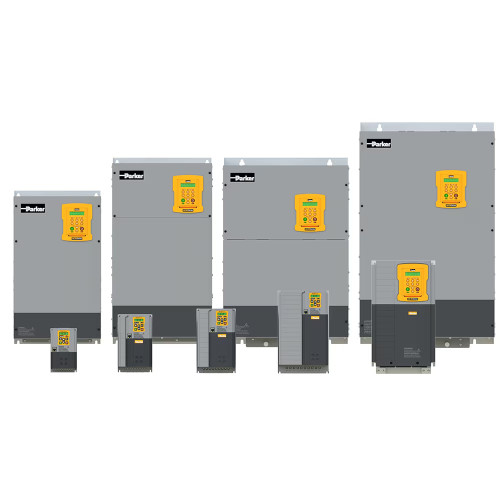

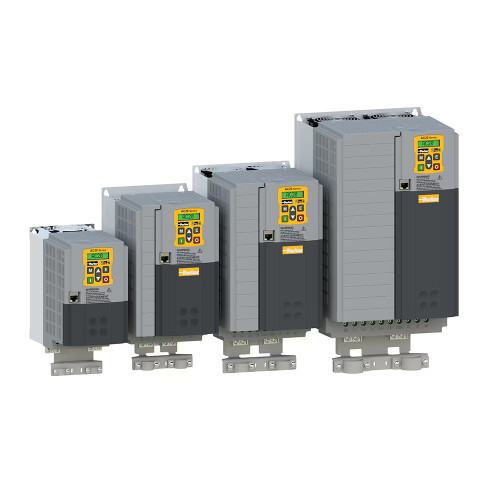

Convertizor de frecventa, Seria AC20 Parker
- Putere: 1,5 ... 180 kW
- Suprasarcina: 150% pentru 60 sec
- Frecventa iesire: 0,5 ... 590 Hz
Invertoarele Seria AC15 Parker ( AC Drive sau variatoare de frecventa) sunt unitati electronice compacte, moderne, usor de configurat destinate controlului vitezei motoarelor sincrone PMAC (cu magneti permanenti) sau a motoarelor asincrone.
Aceste convertizoare au modul Ethernet integrat si posibilitatea de a folosi diverse alte module suplimentare pentru permiterea comunicarii cu majoritatea protocoalelor disponibile pe piata. Invertoarele seria AC20 pot inlocui seria 690 retrasa din productie.
- Putere: 1,5 ... 180 kW
- Tensiune alimentare: monofazat sau trifazat, 220/380-240/480V ±10% 50-60Hz ±5%
- Suprasarcina: 150% pentru 60 sec
- Frecventa iesire: 0,5 ... 590 Hz
- Clasa de protectie: IP20
- Comunicare: Modbus TCP/IP, Profinet, EtherNet IP

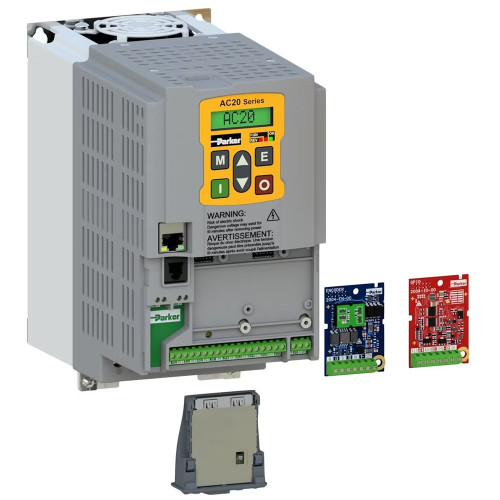

- Optiuni aditionale de comunicare: CANopen, EtherCAT, Ethernet IP, Profibus DVP-1, ProfiNet IO, RS485 Modbus RTU Slave
- Safe Torque off (STO): SIL2, PLd
- Programare: panou de control sau PC (prin cablu Ethernet + DSE Lite software)
| Cod | Tip | Tensiune | Putere | Stoc | Cerere oferta |
|---|---|---|---|---|---|
| 20G-12-0070-BF | AC20 - Frame 2 | 1x230Vac | 7A / 1.5 kW |
|
Adauga |
| 20G-12-0100-BF | AC20 - Frame 2 | 1x230Vac | 10A /2.2 kW |
|
Adauga |
| 20G-32-0070-BF | AC20 - Frame 2 | 3x230Vac | 7A / 1.5 kW |
|
Adauga |
| 20G-32-0100-BF | AC20 - Frame 2 | 3x230Vac | 10A / 2.2 kW |
|
Adauga |
| 20G-33-0170-BF | AC20 - Frame 3 | 3x230Vac | 17A / 4 kW |
|
Adauga |
| 20G-34-0210-BF | AC20 - Frame 4 | 3x230Vac | 21A / 5.5 kW |
|
Adauga |
| 20G-35-0300-BF | AC20 - Frame 5 | 3x230Vac | 30A /7.5 kW |
|
Adauga |
| 20G-35-0400-BF | AC20 - Frame 5 | 3x230Vac | 40A /11 kW |
|
Adauga |
| 20G-410-3600-BF | AC20 - Frame 10 | 3x400Vac | 360A / 180kW |
|
Adauga |
| 20G-42-0040-BF | AC20 - Frame 2 | 3x400Vac | 4A / 1.5 kW |
|
Adauga |
| 20G-42-0065-BF | AC20 - Frame 2 | 3x400Vac | 6.5A / 2.2kW |
|
Adauga |
| 20G-43-0120-BF | AC20 - Frame 3 | 3x400Vac | 12A /5.5 kW |
|
Adauga |
| 20G-43-0170-BF | AC20 - Frame 3 | 3x400Vac | 17A /7.5 kW |
|
Adauga |
| 20G-44-0230-BF | AC20 - Frame 4 | 3x400Vac | 23A /11 kW |
|
Adauga |
| 20G-44-0320-BF | AC20 - Frame 4 | 3x400Vac | 32A /15 kW |
|
Adauga |
| 20G-45-0380-BF | AC20 - Frame 5 | 3x400Vac | 38A /18.5kW |
|
Adauga |
| 20G-45-0440-BF | AC20 - Frame 5 | 3x400Vac | 44A /22 kW |
|
Adauga |
| 20G-45-0600-BF | AC20 - Frame 5 | 3x400Vac | 60A /30kW |
|
Adauga |
| 20G-46-0750-BF | AC20 - Frame 6 | 3x400Vac | 75A /37 kW |
|
Adauga |
| 20G-46-0900-BF | AC20 - Frame 6 | 3x400Vac | 90A /45 kW |
|
Adauga |
| 20G-47-1100-BF | AC20 - Frame 7 | 3x400Vac | 110A /55 kW |
|
Adauga |
| 20G-47-1500-BF | AC20 - Frame 7 | 3x400Vac | 150A /75 kW |
|
Adauga |
| 20G-48-1800-BF | AC20 - Frame 8 | 3x400Vac | 180A /22 kW |
|
Adauga |
| 20G-48-2200-BF | AC20 - Frame 8 | 3x400Vac | 220A /90kW |
|
Adauga |
| 20G-48-2650-BF | AC20 - Frame 8 | 3x400Vac | 265A/110kW |
|
Adauga |
| 20G-49-3200-BF | AC20 - Frame 9 | 3x400Vac | 320A/132kW |
|
Adauga |
| 20G-42-0090-BF | AC20 - Frame 2 | 3x400Vac | 9A/4kW |
|
Adauga |
