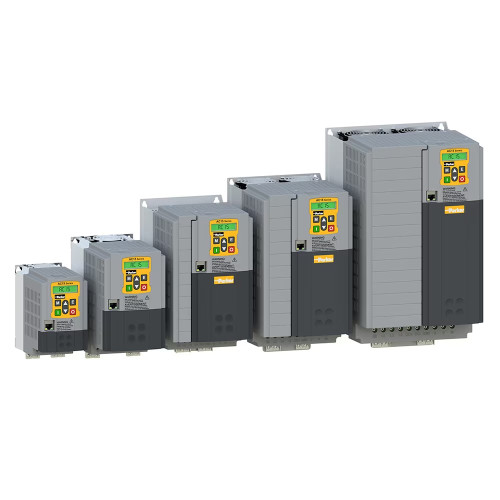

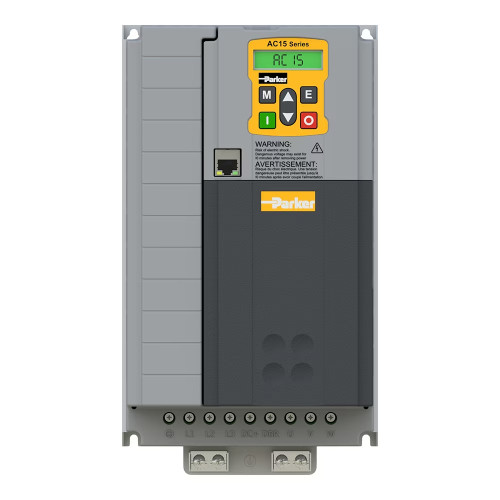

Convertizor de frecventa, Seria AC15 Parker
Tip produs: AC15
- Putere: 0,37 ... 30 kW
- Suprasarcina: 150% pentru 60 sec
- Frecventa iesire: 0,5 ... 590 Hz
Invertoarele Seria AC15 Parker ( AC Drive sau variatoare de frecventa) sunt unitati electronice compacte usor de configurat destinate controlului vitezei motoarelor sincrone PMAC (cu magneti permanenti) sau a motoarelor asincrone.
- Putere: 0,37 ... 30 kW
- Tensiune alimentare: monofazat sau trifazat, 220/380-240/480V ±10% 50-60Hz ±5%
- Suprasarcina: 150% pentru 60 sec
- Frecventa iesire: 0,5 ... 590 Hz
- Clasa de protectie: IP20
- Comunicare: Modbus TCP/IP, EtherNet
- Safe Torque off (STO): SIL2, PLd
- Programare: panou de control sau PC (prin cablu Ethernet + DSE Lite software)
| Cod | Tip | Tensiune | Putere | Stoc | Cerere oferta |
|---|---|---|---|---|---|
| 15G-11-0025-BF | AC15 - Frame 1 | 1x230Vac | 2.5A / 0.37 kW |
|
Adauga |
| 15G-11-0045-BF | AC15 - Frame 1 | 1x230Vac | 4.5A / 0.75 kW |
|
Adauga |
| 15G-11-0070-BF | AC15 - Frame 1 | 1x230Vac | 7A / 1.5 kW |
|
Adauga |
| 15G-12-0100-BF | AC15 - Frame 2 | 1x230Vac | 10A / 2.2 kW |
|
Adauga |
| 15G-31-0025-BF | AC15 - Frame 1 | 3x230Vac | 2.5A / 0.37 kW |
|
Adauga |
| 15G-31-0045-BF | AC15 - Frame 1 | 3x230Vac | 4.5A / 0.75 kW |
|
Adauga |
| 15G-31-0070-BF | AC15 - Frame 1 | 3x230Vac | 7A / 1.5 kW |
|
Adauga |
| 15G-32-0100-BF | AC15 - Frame 2 | 3x230Vac | 10A / 2.2 kW |
|
Adauga |
| 15G-33-0170-BF | AC15 - Frame 3 | 3x230Vac | 17A / 4.0kW |
|
Adauga |
| 15G-34-0210-BF | AC15 - Frame 4 | 3x230Vac | 21A / 5.5 kW |
|
Adauga |
| 15G-35-0300-BF | AC15 - Frame 5 | 3x230Vac | 30A / 7.5 kW |
|
Adauga |
| 15G-35-0400-BF | AC15 - Frame 5 | 3x230Vac | 40A /11 kW |
|
Adauga |
| 15G-41-0012-BF | AC15 - Frame 1 | 3x400Vac | 1.2A /0.37 kW |
|
Adauga |
| 15G-41-0020-BF | AC15 - Frame 1 | 3x400Vac | 2A /0.75 kW |
|
Adauga |
| 15G-41-0040-BF | AC15 - Frame 2 | 3x400Vac | 4A /1.5 kW |
|
Adauga |
| 15G-42-0065-BF | AC15 - Frame 2 | 3x400Vac | 6.5A /2.2 kW |
|
Adauga |
| 15G-42-0090-BF | AC15 - Frame 2 | 3x400Vac | 9A / 4.0 kW |
|
Adauga |
| 15G-43-0120-BF | AC15 - Frame 3 | 3x400Vac | 12A /5.5kW |
|
Adauga |
| 15G-43-0170-BF | AC15 - Frame 3 | 3x400Vac | 17A /7.5 kW |
|
Adauga |
| 15G-44-0230-BF | AC15 - Frame 4 | 3x400Vac | 23A /11 kW |
|
Adauga |
| 15G-44-0320-BF | AC15 - Frame 4 | 3x400Vac | 32A /15 kW |
|
Adauga |
| 15G-45-0380-BF | AC15 - Frame 5 | 3x400Vac | 38A /18.5 kW |
|
Adauga |
| 15G-45-0440-BF | AC15 - Frame 5 | 3x400Vac | 44A /22 kW |
|
Adauga |
| 15G-45-0600-BF | AC15 - Frame 5 | 3x400Vac | 60A /30kW |
|
Adauga |
