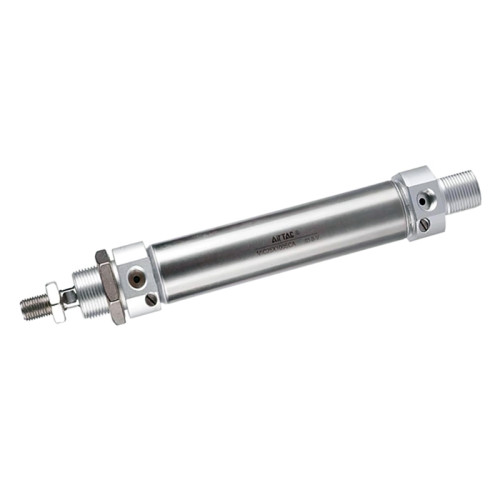

Cilindru pneumatic rotund ISO 6432, seria MIC Ø25, dubla actionare, amortizare reglabila
Tip produs: MIC25
- dubla actionare
- amortizare reglabila la capat de cursa
- diametru piston: Ø25 mm
- standard: ISO 6432
Cilindru pneumatic rotund ISO 6432, dubla actionare (sau dublu efect) cu amortizare reglabila la capat de cursa si magnet pentru senzori.
- dubla actionare
- amortizare reglabila la capat de cursa
- cu magnet pentru senzori
- diametru piston: Ø25 mm
- standard: ISO 6432

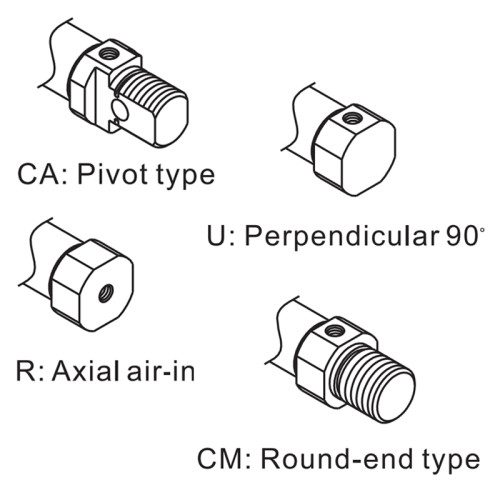

- variante constructive prindere spate tip: CA, U, R, CM
- gama standard de temperatura: -20⁰C ... +70⁰C
- presiune de lucru : 1,5 ... 8 bar
- aer comprimat filtrat: min 40µ
- Catalog cilindri pneumatici rotunzi AirTAC - seria MI : Deschide
| Cod | Diametru piston mm | Cursa mm | Racord aer | Diametru tija (ØD) mm | Tip | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| MIC25X10SCAG | 25 | 10 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X15SCAG | 25 | 15 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X20SCAG | 25 | 20 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X25SCAG | 25 | 25 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X30SCAG | 25 | 30 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X35SCAG | 25 | 35 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X40SCAG | 25 | 40 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X50SCAG | 25 | 50 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X60SCAG | 25 | 60 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X70SCAG | 25 | 70 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X75SCAG | 25 | 75 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X80SCAG | 25 | 80 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X90SCAG | 25 | 90 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X100SCAG | 25 | 100 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X110SCAG | 25 | 110 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X120SCAG | 25 | 120 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X125SCAG | 25 | 125 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X150SCAG | 25 | 150 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X180SCAG | 25 | 180 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X200SCAG | 25 | 200 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X220SCAG | 25 | 220 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X250SCAG | 25 | 250 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X275SCAG | 25 | 275 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X300SCAG | 25 | 300 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X320SCAG | 25 | 320 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X400SCAG | 25 | 400 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X450SCAG | 25 | 450 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X455SCAG | 25 | 455 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X550SCAG | 25 | 550 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X650SCAG | 25 | 650 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X700SCAG | 25 | 700 | G1/8 | 10 | CA |
|
Adauga |
| MIC25X800SCAG | 25 | 800 | G1/8 | 10 | CA |
|
Adauga |
