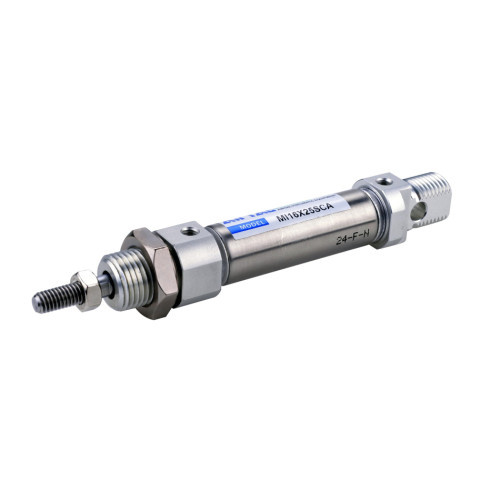

Cilindru pneumatic rotund ISO 6432, seria MI Ø20, dubla actionare, amortizare fixa
Tip produs: MI20
- dubla actionare
- amortizare fixa la capat de cursa
- diametru piston: Ø20 mm
- standard: ISO 6432
Cilindru pneumatic rotund ISO 6432, dubla actionare (sau dublu efect) cu amortizare fixa la capat de cursa si magnet pentru senzori.
- dubla actionare
- amortizare fixa la capat de cursa
- cu magnet pentru senzori
- diametru piston: Ø20 mm
- standard: ISO 6432

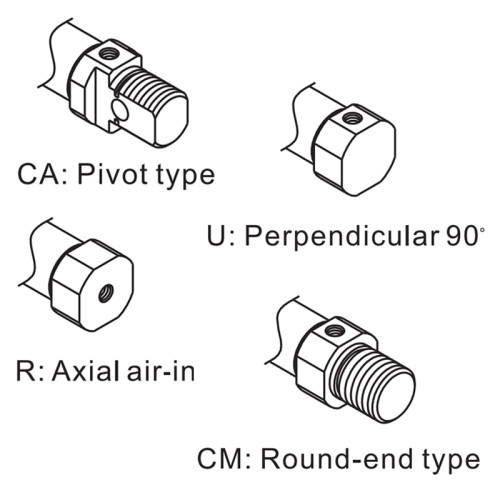

- variante constructive prindere spate tip: CA, U, R, CM
- gama standard de temperatura: -20⁰C ... +70⁰C
- presiune de lucru : 1,5 ... 8 bar
- aer comprimat filtrat: min 40µ
- Catalog cilindri pneumatici rotunzi AirTAC - seria MI : Deschide
| Cod | Diametru piston mm | Cursa mm | Racord aer | Diametru tija (ØD) mm | Tip | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| MI20X5SCAG | 20 | 5 | G1/8 | 8 | CA |
|
Adauga |
| MI20X10SCAG | 20 | 10 | G1/8 | 8 | CA |
|
Adauga |
| MI20X15SCAG | 20 | 15 | G1/8 | 8 | CA |
|
Adauga |
| MI20X20SCAG | 20 | 20 | G1/8 | 8 | CA |
|
Adauga |
| MI20X25SCAG | 20 | 25 | G1/8 | 8 | CA |
|
Adauga |
| MI20X30SCAG | 20 | 30 | G1/8 | 8 | CA |
|
Adauga |
| MI20X40SCAG | 20 | 40 | G1/8 | 8 | CA |
|
Adauga |
| MI20X50SCAG | 20 | 50 | G1/8 | 8 | CA |
|
Adauga |
| MI20X60SCAG | 20 | 60 | G1/8 | 8 | CA |
|
Adauga |
| MI20X65SCAG | 20 | 65 | G1/8 | 8 | CA |
|
Adauga |
| MI20X70SCAG | 20 | 70 | G1/8 | 8 | CA |
|
Adauga |
| MI20X75SCAG | 20 | 75 | G1/8 | 8 | CA |
|
Adauga |
| MI20X80SCAG | 20 | 80 | G1/8 | 8 | CA |
|
Adauga |
| MI20X100SCAG | 20 | 100 | G1/8 | 8 | CA |
|
Adauga |
| MI20X115SCAG | 20 | 115 | G1/8 | 8 | CA |
|
Adauga |
| MI20X120SCAG | 20 | 120 | G1/8 | 8 | CA |
|
Adauga |
| MI20X125SCAG | 20 | 125 | G1/8 | 8 | CA |
|
Adauga |
| MI20X130SCAG | 20 | 130 | G1/8 | 8 | CA |
|
Adauga |
| MI20X135SCAG | 20 | 135 | G1/8 | 8 | CA |
|
Adauga |
| MI20X145SCAG | 20 | 145 | G1/8 | 8 | CA |
|
Adauga |
| MI20X150SCAG | 20 | 150 | G1/8 | 8 | CA |
|
Adauga |
| MI20X160SCAG | 20 | 160 | G1/8 | 8 | CA |
|
Adauga |
| MI20X170SCAG | 20 | 170 | G1/8 | 8 | CA |
|
Adauga |
| MI20X175SCAG | 20 | 175 | G1/8 | 8 | CA |
|
Adauga |
| MI20X180SCAG | 20 | 180 | G1/8 | 8 | CA |
|
Adauga |
| MI20X200SCAG | 20 | 200 | G1/8 | 8 | CA |
|
Adauga |
| MI20X210SCAG | 20 | 210 | G1/8 | 8 | CA |
|
Adauga |
| MI20X260SCAG | 20 | 260 | G1/8 | 8 | CA |
|
Adauga |
| MI20X300SCAG | 20 | 300 | G1/8 | 8 | CA |
|
Adauga |
| MI20X350SCAG | 20 | 350 | G1/8 | 8 | CA |
|
Adauga |
| MI20X400SCAG | 20 | 400 | G1/8 | 8 | CA |
|
Adauga |
| MI20X500SCAG | 20 | 500 | G1/8 | 8 | CA |
|
Adauga |
