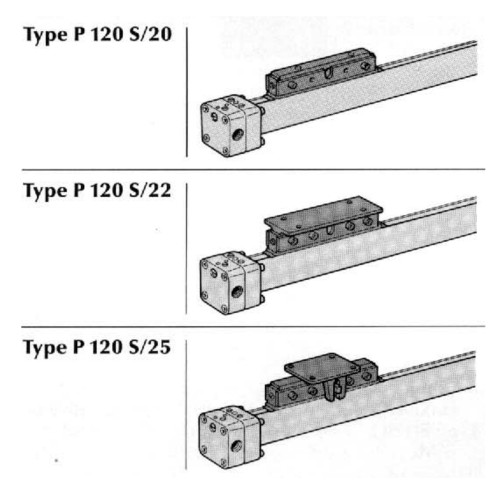

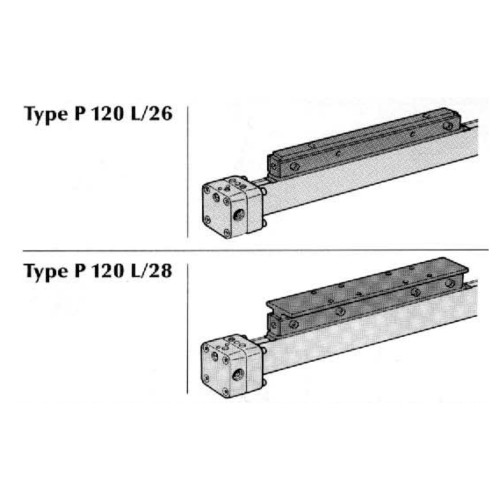

Cilindru pneumatic fara tija ORIGA, seria P120
Tip produs: P120
- diametru piston: Ø40, Ø50, Ø63, Ø80 mm
- cursa maxima: 12000 mm
*** Produse scoase din fabricatia curenta! Va rugam sa ne contactati pentru detalii.
Cilindru pneumatic fara tija Origa seria P120, dubla actionare, amortizare reglabila la capat de cursa si magnet pentru senzori.
- dubla actionare
- amortizare reglabila la capat de cursa
- magnet pentru senzori
- diametru piston: Ø40, Ø50, Ø63, Ø80 mm
- cursa maxima: 12000 mm
- Catalog pdf : Deschide
| Cod | Diametru piston mm | Cursa mm | Racord aer | Stoc | Cerere oferta |
|---|---|---|---|---|---|
| 4200-40-01000-0000-000000 | 40 | 1000 | G1/4 |
|
Adauga |
| 4300-40-01000-0000-000000 | 40 | 1000 | G1/4 |
|
Adauga |
| 4400-40-01000-0000-00000 | 40 | 1000 | G1/4 |
|
Adauga |
| 4300-40-01200-0000-000000 | 40 | 1200 | G1/4 |
|
Adauga |
| 4000-40-01300-0000-000000 | 40 | 1300 | G1/4 |
|
Adauga |
| 4300-40-01500-0000-000000 | 40 | 1500 | G1/4 |
|
Adauga |
| 4000-40-01650-0000-000000 | 40 | 1650 | G1/4 |
|
Adauga |
| 4000-40-00700-0000-000000 | 40 | 700 | G1/4 |
|
Adauga |
| 4000-40-00800-0000-000000 | 40 | 800 | G1/4 |
|
Adauga |
| 4000-40-00460-0000-000000 | 40 | 460 | G1/4 |
|
Adauga |
| 4100-40-00765-0100-000000 | 40 | 765 | G1/4 |
|
Adauga |
| 4100-40-00300-0000-000000 | 40 | 300 | G1/4 |
|
Adauga |
| 4100-40-00300-0000-010000 | 40 | 300 | G1/4 |
|
Adauga |
| 4100-40-03050-0000-000000 | 40 | 3050 | G1/4 |
|
Adauga |
| 4000-40-00300-0000-000000 | 40 | 300 | G1/4 |
|
Adauga |
| 4000-40-00350-0000-000000 | 40 | 350 | G1/4 |
|
Adauga |
| 4000-40-00400-0000-000000 | 40 | 400 | G1/4 |
|
Adauga |
| 4000-40-00500-0000-000000 | 40 | 500 | G1/4 |
|
Adauga |
| 4000-40-02500-0000-000000 | 40 | 2500 | G1/4 |
|
Adauga |
| 4200-40-01000-0000-000000 | 40 | 1000 | G1/4 |
|
Adauga |
| 4300-40-01000-0000-000000 | 40 | 1000 | G1/4 |
|
Adauga |
| 4300-40-01200-0000-000000 | 40 | 1200 | G1/4 |
|
Adauga |
| 4300-40-01500-0000-000000 | 40 | 1500 | G1/4 |
|
Adauga |
| 5000-50-02430-1000-000000 | 50 | 2430 | G1/4 |
|
Adauga |
| 5000-50-00300-0000-000000 | 50 | 300 | G1/4 |
|
Adauga |
| 5000-50-00910-0000-000000 | 50 | 910 | G1/4 |
|
Adauga |
| 5000-050-01500-0000-3100 | 50 | 1500 | G1/4 |
|
Adauga |
| 5100-50-00900-0000-000000 | 50 | 900 | G1/4 |
|
Adauga |
| 5100-50-00910-0000-000000 | 50 | 910 | G1/4 |
|
Adauga |
