Cilindru pneumatic de forta cu piston, seria C0P
Tip produs: C0P
- simpla actionare / dubla actionare
- curse disponibile: 50, 60, 80, 100 mm
- forta actionare (6 bar): 1,6 / 3 / 25 KN
Cilindri pneumatici de forta cu piston seria C0P

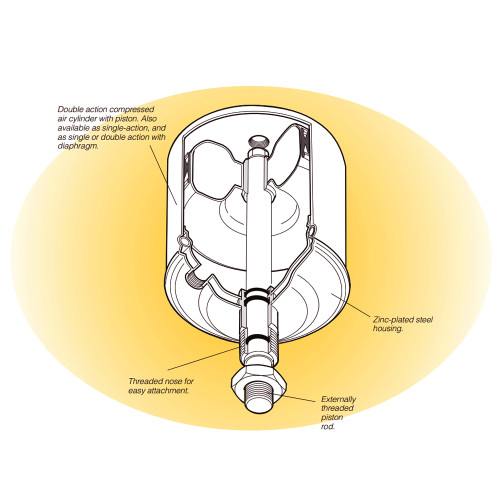

Constructia interna permite exercitare de forte mari, fiind utilizat in diverse aplicatii de prindere, nituire, perforare.
- simpla actionare / dubla actionare
- curse disponibile: 50, 60, 80, 100 mm
- forta actionare (6 bar): 1,6 / 3 / 25 KN
- Catalog pdf : Deschide
| Cod | Racord aer | Cursa mm | A mm | B mm | Forta N | Info | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|

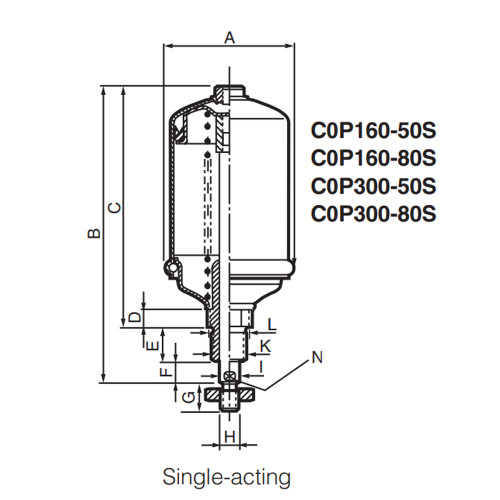

| C0P160‑50S | G1/4 | 50 | 66 | 192 | 1600 | simpla actionare |
|
Adauga |
| C0P160‑80S | G1/4 | 80 | 66 | 222 | 1600 | simpla actionare |
|
Adauga |
| C0P300‑50S | G1/4 | 50 | 93 | 192 | 3000 | simpla actionare |
|
Adauga |
| C0P300‑80S | G1/4 | 80 | 93 | 222 | 3000 | simpla actionare |
|
Adauga |

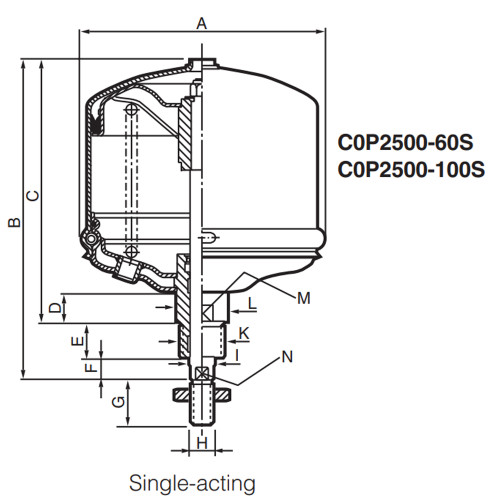

| C0P2500‑60S | G1/2 | 100 | 268 | 345 | 25000 | simpla actionare |
|
Adauga |
| C0P2500‑100S | G1/2 | 60 | 268 | 385 | 25000 | simpla actionare |
|
Adauga |

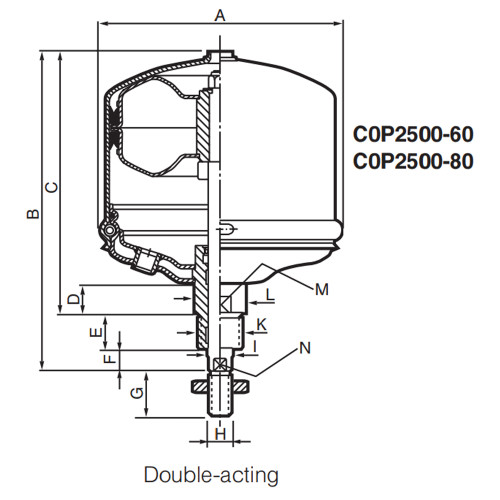

| C0P2500‑60 | G1/2 | 60 | 268 | 345 | 25000 | dubla actionare |
|
Adauga |
| C0P2500‑80 | G1/2 | 80 | 268 | 385 | 25000 | dubla actionare |
|
Adauga |
