Cilindru pneumatic cu diafragma, seria C0D
Tip produs: C0D
- simpla actionare / dubla actionare
- piston tip diafragma (membrana)
- curse disponibile: 40, 50 mm
- forta actionare (6 bar): 3 / 6 / 12 KN
Cilindri pneumatici de forta cu piston tip diafragma (membrana NBR armata cu fibra textila), seria C0D
Constructia interna permite exercitare de forte mari, fiind utilizat in diverse aplicatii de prindere, nituire, perforare.
- simpla actionare (revenire cu arc) / dubla actionare
- curse disponibile: 40, 50 mm
- forta actionare (6 bar): 3 / 6 / 12 KN
- Catalog pdf : Deschide

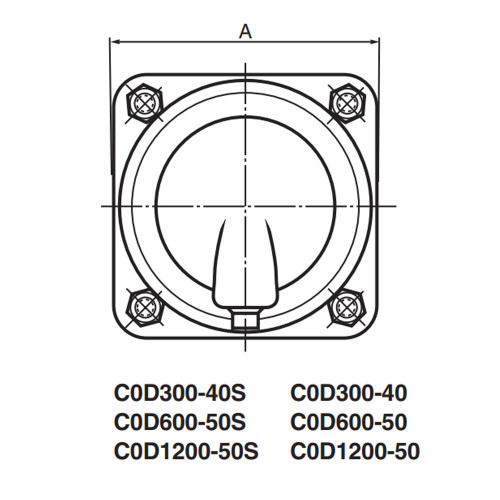

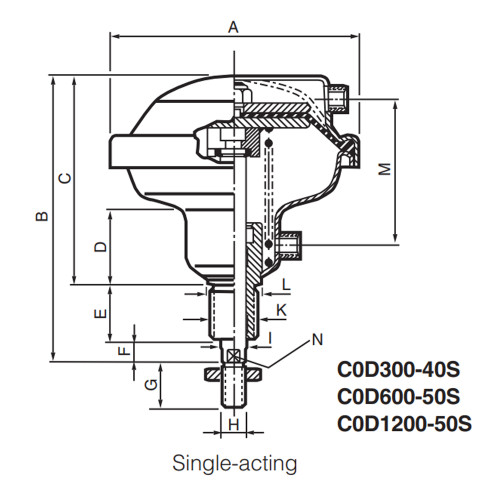

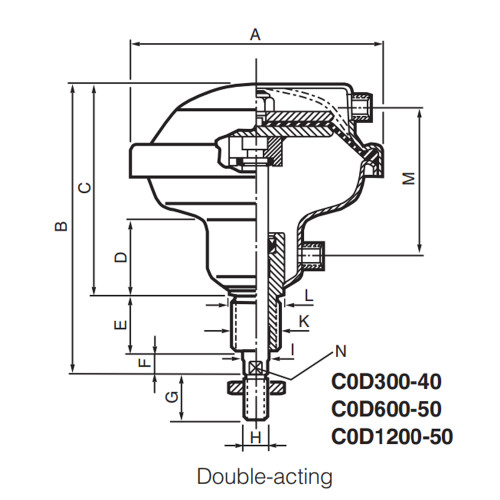

| Cod | Racord aer | Cursa mm | A mm | B mm | Forta N | Info | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| C0D300‑40S | G1/4 | 40 | 150 | 183 | 3000 | simpla actionare |
|
Adauga |
| C0D300‑40 | G1/4 | 40 | 150 | 183 | 3000 | dubla actionare |
|
Adauga |
| C0D600‑50S | G1/4 | 50 | 195 | 212 | 6000 | simpla actionare |
|
Adauga |
| C0D600‑50 | G1/4 | 50 | 195 | 212 | 6000 | dubla actionare |
|
Adauga |
| C0D1200‑50S | G1/2 | 50 | 261 | 243 | 12000 | simpla actionare |
|
Adauga |
| C0D1200‑50 | G1/2 | 50 | 261 | 243 | 12000 | dubla actionare |
|
Adauga |
