Valva axiala, normal deschis, garnituri FKM
Tip produs: 4212
Presiune maxima de lucru: 10 bar
Temperatura: 0⁰C ... +135⁰C
Vacuum: 740 mmHg

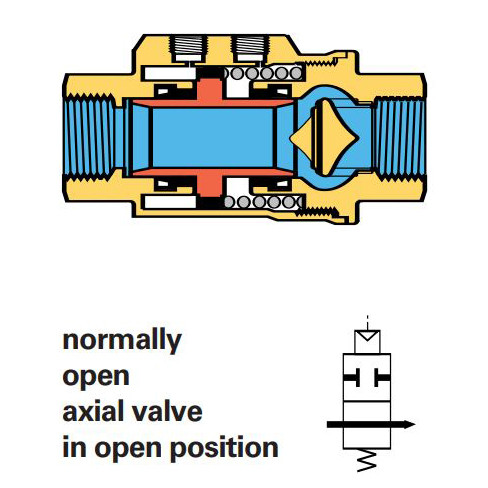

Valva 2/2 normal deschisa (ND) cu actionare pneumatica
- pentru controlul traseelor de la distanta
- Conformitate : ROHS
- Presiune maxima de lucru : 10 bar
- Temperatura maxima de lucru : 135 ⁰C
- Vacuum : 740 mmHg
- Corp : alama nichelata
- Piulita de blocare : alama nichelata
- Garnituri : FKM (viton)
- Etansare bila : FKM (viton)
- Amortizor : bronz sinterizat

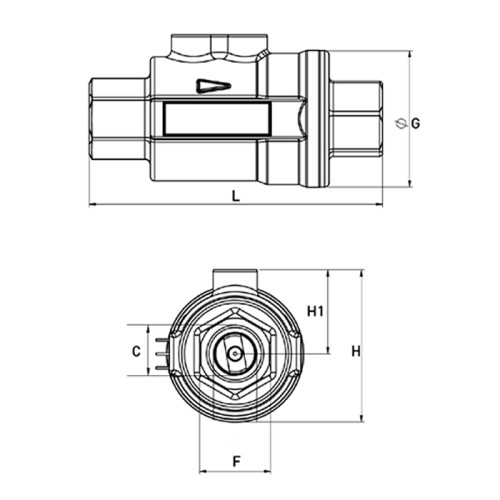

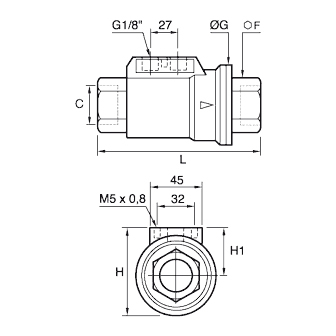

| Cod | C | F mm | ØG mm | H mm | H1 mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 4212 10 17 20 | G3/8 | 22 | 46 | 54 | 31 | 98 |
|
Adauga |
| 4212 15 21 20 | G1/2 | 27 | 52 | 60 | 35 | 112 |
|
Adauga |
| 4212 20 27 20 | G3/4 | 33 | 64 | 70 | 38 | 135 |
|
Adauga |
| 4212 25 34 20 | G1 | 41 | 69 | 76 | 41,5 | 143 |
|
Adauga |
| 4212 40 49 20 | G1 1/2 | 60 | 96 | 102 | 54 | 180 |
|
Adauga |
| 4212 50 48 20 | G2 | 75 | 109 | 115 | 60,5 | 207 |
|
Adauga |
