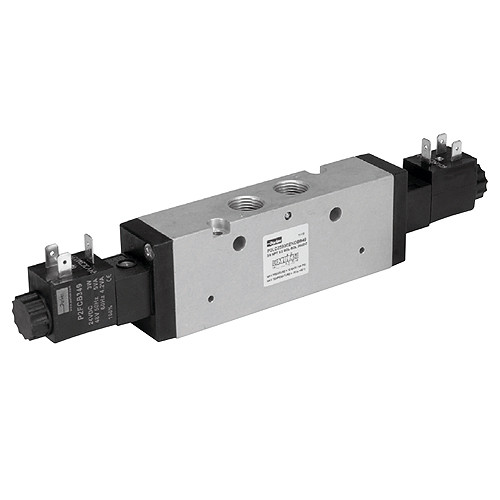

Valva 5/3, seria Viking Xtreme, actionare electrica, centru ventilat
Tip produs: P2L..X8..EE
- valve 5/3, seria Viking Xtreme cu porturi G1/8, G1/4, G3/8, G1/2
- actionare electrica, centru ventilat
- distribuitor 5/3, seria Viking Xtreme cu porturi G1/8, G1/4, G3/8, G1/2
- control electric (actionare electrica) cu bobine 22mm si conectori 3-pin industrial form B sau bobine 30mm si conectori form A/ISO4400
- centru ventilat
Valve Viking Xtreme:
- Presiune de lucru : 3,5 ... 10 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 50 ⁰C
-
Valve Viking Xtreme Duty:
- Presiune de lucru : 3,5 ... 12 / 16 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 60 ⁰C
- Valve seria Viking Xtreme : Deschide
| Cod | Racord aer | Varianta | Info | Stoc | Cerere oferta |
|---|---|---|---|---|---|
| P2LAX811EENDDN | G1/8 | Xtreme | fara bobine |
|
Adauga |
| P2LBX812EENDDN | G1/4 | Xtreme | fara bobine |
|
Adauga |
| P2LCX813EENDDN | G3/8 | Xtreme | fara bobine |
|
Adauga |
| P2LDX814EENDDN | G1/2 | Xtreme | fara bobine |
|
Adauga |
| P2LAX811EENDDB49 | G1/8 | Xtreme | cu bobine 24Vdc |
|
Adauga |
| P2LBX812EENDDB49 | G1/4 | Xtreme | cu bobine 24Vdc |
|
Adauga |
| P2LCX813EENDDB49 | G3/8 | Xtreme | cu bobine 24Vdc |
|
Adauga |
| P2LDX814EENDDB49 | G1/2 | Xtreme | cu bobine 24Vdc |
|
Adauga |
| P2LAX811EEHDDN | G1/8 | Xtreme duty | fara bobine |
|
Adauga |
| P2LBX812EEHDDN | G1/4 | Xtreme duty | fara bobine |
|
Adauga |
| P2LCX813EEHDDN | G3/8 | Xtreme duty | fara bobine |
|
Adauga |
| P2LDX814EEHDDN | G1/2 | Xtreme duty | fara bobine |
|
Adauga |
