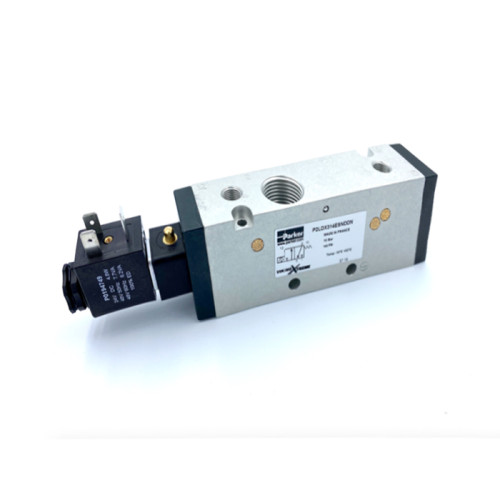

Valva 3/2, seria Viking Xtreme, actionare electrica, revenire cu arc
Tip produs: P2L..X3..ES
- valve 3/2, seria Viking Xtreme cu porturi G1/8, G1/4, G3/8, G1/2
- simpla actionare electrica, revenire cu arc
- bobine 22mm / 30mm
- distribuitor 3/2 monostabil, seria Viking Xtreme cu porturi G1/8, G1/4, G3/8, G1/2
- control electric (actionare electrica) cu bobine 22mm si conectori 3-pin industrial form B sau bobine 30mm si conectori form A/ISO4400
Valve Viking Xtreme:
- Presiune de lucru : 3,2 / 3,5 ... 10 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 50 ⁰C
Valve Viking Xtreme Duty:
- Presiune de lucru : 3,2 / 3,5 ... 12 / 16 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 60 ⁰C
- Valve seria Viking Xtreme : Deschide
| Cod | Racord aer | Varianta | Info | Stoc | Cerere oferta |
|---|---|---|---|---|---|
| P2LAX311ESNDDN | G1/8 | Xtreme | fara bobina |
|
Adauga |
| P2LBX312ESNDDN | G1/4 | Xtreme | fara bobina |
|
Adauga |
| P2LCX313ESNDDN | G3/8 | Xtreme | fara bobina |
|
Adauga |
| P2LDX314ESNDDN | G1/2 | Xtreme | fara bobina |
|
Adauga |
| P2LAX311ESNDDB49 | G1/8 | Xtreme | cu bobina 24Vdc |
|
Adauga |
| P2LBX312ESNDDB49 | G1/4 | Xtreme | cu bobina 24Vdc |
|
Adauga |
| P2LCX313ESNDDB49 | G3/8 | Xtreme | cu bobina 24Vdc |
|
Adauga |
| P2LDX314ESNDDB49 | G1/2 | Xtreme | cu bobina 24Vdc |
|
Adauga |
| P2LAX311ESHDDN | G1/8 | Xtreme duty | fara bobina |
|
Adauga |
| P2LBX312ESHDDN | G1/4 | Xtreme duty | fara bobina |
|
Adauga |
| P2LCX313ESHDDN | G3/8 | Xtreme duty | fara bobina |
|
Adauga |
| P2LDX314ESHDDN | G1/2 | Xtreme duty | fara bobina |
|
Adauga |
