Valva 3/2, seria S9, dubla actionare electrica
Tip produs: S9 381

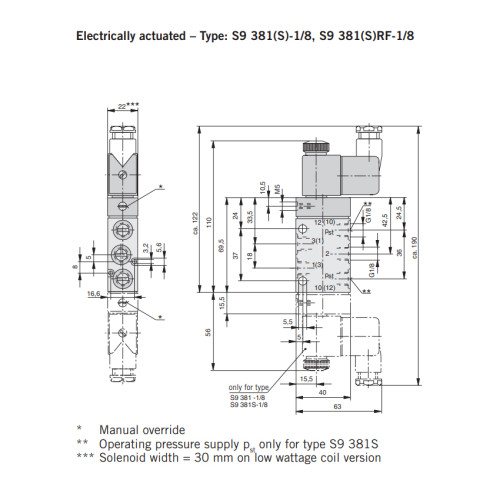

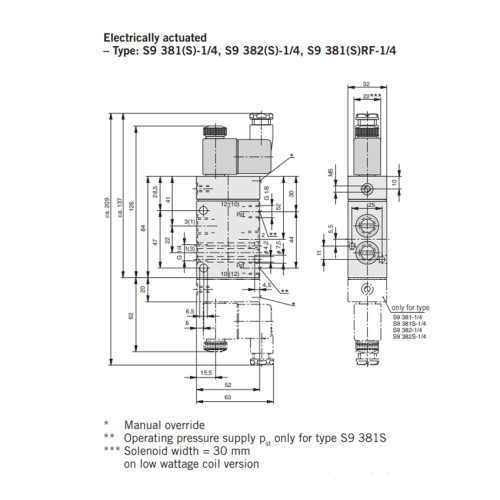

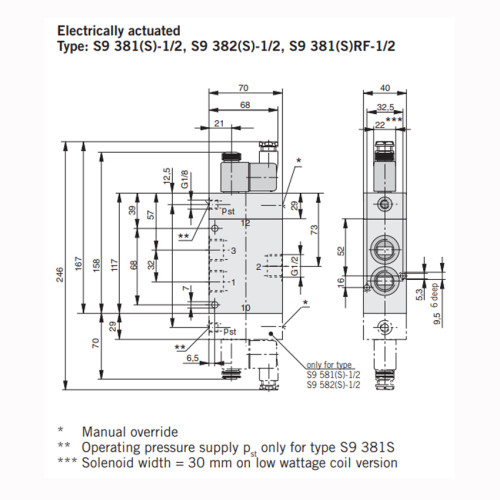

- valve 3/2, seria S9 cu porturi G1/8, G1/4, sau G1/2
- dubla actionare electrica
- distribuitor 3/2 bistabil, seria S9 cu porturi G1/8, G1/4, sau G1/2
- control electric (actionare electrica)
- Presiune de lucru : 2 ... 10 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 60 ⁰C
| Cod | Racord aer | Debit l/min | Tip | Stoc | Cerere oferta |
|---|---|---|---|---|---|
| PA10299-0033-00 | G1/8 | 500 | S9 381-1/8 |
|
Adauga |
| PA10299-0233 | G1/8 | 500 | S9 381-1/8-24Vdc |
|
Adauga |
| PA10299-6133 | G1/8 | 500 | S9 381-1/8-220Vac |
|
Adauga |
| PA12718-0033-00 | G1/4 | 1300 | S9 381-1/4 |
|
Adauga |
| PA12718-0233 | G1/4 | 1300 | S9 381-1/4-24Vdc |
|
Adauga |
| PA12718-6133 | G1/4 | 1300 | S9 381-1/4-220Vac |
|
Adauga |
| PA16414-0033-00 | G1/2 | 3500 | S9 381-1/2 |
|
Adauga |
| PA16414-0233 | G1/2 | 3500 | S9 381-1/2-24Vdc |
|
Adauga |
| PA16414-6133 | G1/2 | 3500 | S9 381-1/2-220Vac |
|
Adauga |
