Supapa de sens inox, filet interior-exterior BSPP
Tip produs: 4892
Presiune maxima de lucru: 40 bar
Temperatura: -20⁰C ... +180⁰C
Permite trecerea aerului comprimat intr-o singura directie.
Componentele din inox asigura rezistanta la fluide si medii agresive.
- Conformitate : ROHS
- Presiune maxima de lucru : 40 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 180 ⁰C

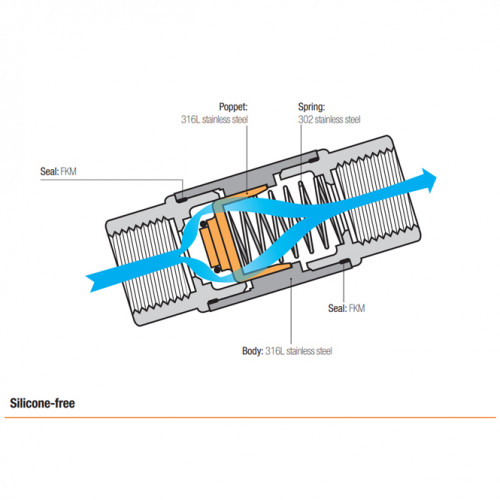

- Corp : otel inox 316L
- Garnituri : FKM (viton)
- Arc : otel inox 302
- Catalog supape de sens Legris : Deschide

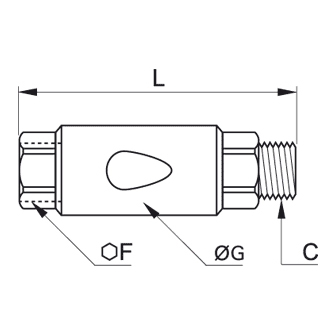

| Cod | C | F mm | ØG mm | L mm | Debit l/min | DN mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 4892 10 10 | G1/8 | 17 | 22 | 56 | 18,88 | 10 |
|
Adauga |
| 4892 13 13 | G1/4 | 17 | 22 | 58 | 19,91 | 10 |
|
Adauga |
| 4892 17 17 | G3/8 | 22 | 30 | 75 | 35,54 | 15 |
|
Adauga |
| 4892 21 21 | G1/2 | 24 | 30 | 79 | 36,5 | 15 |
|
Adauga |
| 4892 27 27 | G3/4 | 32 | 42 | 84 | 65,86 | 20 |
|
Adauga |
| 4892 34 34 | G1 | 38 | 42 | 102 | 92,6 | 25 |
|
Adauga |
