Set mentenanta LF3600, racorduri rapide push-in, filete BSPP

Parker Legris provides 5 Maintenance kits, ready to use, to make easier and quicker the maintenance operations thanks to gather all most used part numbers of push-in fittings or accessories in one storage case.

LF 3000® Maintenance Kit, BSPP Threads
• Resistant up to +80°C at 20 bar
• BSPP products
• A selection of 24 references covering the most-used products
• Products available in the most common diameters: 4 mm, 6 mm and 8 mm
• A kit contains more than 300 products and then can be completed according to your needs.

LF 3000® Maintenance Kit, BSPT Threads
• Resistant up to +80°C at 20 bar
• BSPT products
• A selection of 24 references covering the most-used products
• Products available in the most common diameters: 4 mm, 6 mm and 8 mm
• A kit contains more than 300 products and then can be completed according to your needs.

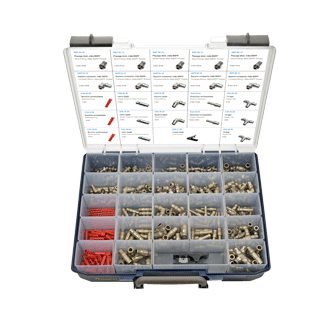

LF 3600 Maintenance Kit, BSPP Threads
• Resistant up to +150°C at 30 bar
• BSPP products
• Excellent mechanical performance
• Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
• Parallel thread - BSPP
• A selection of 232 references covering the most-used products

Maintenance Kit - Accessories for push-in fittings, BSPT Threads
• Robust design
• Suitable for low and high voltage depending on the model
• Forged shapes for mechanical strength
• Taper thread – BSPT
• A selection of 216 references covering the most-used products

Maintenance Kit - Accessories for push-in fittings, BSPP Threads
• Robust design
• Suitable for low and high voltage depending on the model
• Forged shapes for mechanical strength
• Taper thread – BSPP
• A selection of 250 references covering the most-used products

Markets:
• Factory Automation
• Vehicule Assembly Facilities
• Food and Beverage
• Semiconductor
• Wearing Apparel
• Packaging Machinery

Applications:
• Pneumatic Machinery Equipment
• Low Pressure Compressed Air Conveying
• Suitable for Vaccum Applications

Technologies:
• Push-In Fittings
• Push-to-Connect Fittings
• Pneumatic Fittings
• Instant Fittings
• Quick Fittings
• Connectors
• Swivel Fittings

Technical Characteristics:
• Fluids: Compressed Air, Other Industrial fluids: please consult us
• Materials: Technical polymer, nickel-plated brass, NBR, FKM (LF3600) , FDA nickel plated brass (LF3600)
• Pressure: Vacuum to 20 bar (30 bars for LF3600 and 60 bar for Accessories)
• Temperature: -20°C to +80°C (+150°C for LF 3600)
• Ø Metric: 4mm to 8 mm
• Thread size: M5, 1/8" to 1/2"

Regulations:
• ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
• DI: 97/23/EC (PED)
• DI : 2002/95/EC (RoHS), 2011/65/EC
• DI : 1907/2006 (REACH)
• FDA : 21CFR (Material Food contac for LF3600)

Application	Coffee Machines
Application	Food Processing
Application	In-Plant Automotive
Application	Misting
Application	Printing
Application	Welding Robots
Connection Type	BSPP
For Fluid Type	Compressed Air
For Fluid Type	Grease
For Fluid Type	Lubricants
For Fluid Type	Water
Gripping Ring Material	Brass, FDA Chemical Nickel-plated (Collet)
Maximum Operating Pressure	30 bar
Maximum Operating Temperature	150 °C
Minimum Operating Temperature	-20 °C
Quantity per Box	119
Seal Material	FKM (O-Ring)
Tube Outside Diameter	4 to 8 mm
Vacuum Pressure Rating	755 mm-Hg

Parker Legris offers service kits for LF3000, LF 3600 push-in fittings and nickel-plated accessories. Presented in boxes of more than 200 references, these kits cover the most commonly used products from the plastic and metal ranges in the low-pressure circuits of industrial machines. These kits are the ideal tools to help you perform key maintenance operations quickly and reduce downtime.	view
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications.	view
