Robinet fluture, Transair gama inox
Tip produs: VR02 gama inox
Presiune maxima de lucru: 10 bar / 7 bar
Temperatura: -10⁰C ... +60⁰C / +90⁰C
Robinetii Transair tip fluture, sau cei cu bila, plasati in diverse puncte ale retelei si in puncte cheie, permit izolarea, adaptarea/reconfigurarea si intretinerea usoara a sistemului. Robinetii nu contin silicon.
- robinetii fluture nu au nevoie de garnitura suplimentara pentru racordarea cu flanse circulare
- Fisier : Deschide

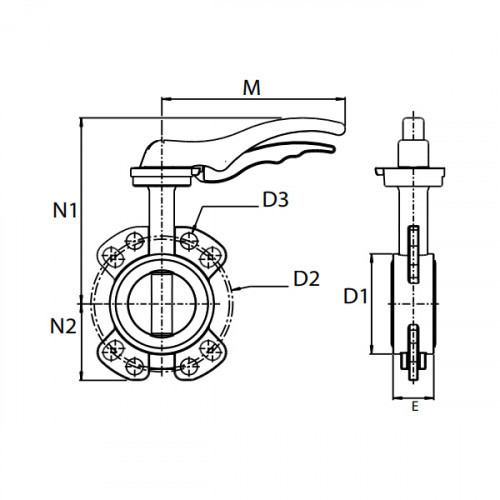

| Cod | Etansare | ØD mm | DN mm | ØD1 mm | M mm | N1 mm | E mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| VR02 M4 01 | EPDM | 42 | 32 | 73 | 192 | 178 | 33 |
|
Adauga |
| VR02 M4 02 | FKM | 42 | 32 | 73 | 192 | 178 | 33 |
|
Adauga |
| VR02 M6 01 | EPDM | 60 | 50 | 89 | 170 | 176 | 43 |
|
Adauga |
| VR02 M6 02 | FKM | 60 | 50 | 89 | 170 | 176 | 43 |
|
Adauga |
| VR02 L1 01 | EPDM | 76 | 80 | 118 | 206 | 219 | 46 |
|
Adauga |
| VR02 L1 02 | FKM | 76 | 80 | 118 | 206 | 219 | 46 |
|
Adauga |
| VR02 L3 01 | EPDM | 100 | 100 | 150 | 206 | 239 | 52 |
|
Adauga |
| VR02 L3 02 | FKM | 100 | 100 | 150 | 206 | 239 | 52 |
|
Adauga |
