Robinet cu sfera, filet interior-exterior
Tip produs: 0401
Presiune maxima de lucru: 40 bar
Temperatura: -20⁰C ... +80⁰C
Robinet cu bila pentru deschiderea / inchiderea unui circuit de aer comprimat sau alte fluide.
- debit maximal (full flow)
- etansare optima (O-ringuri de compensare)
- rezistenta foarte buna la depuneri datorata configuratiei garniturii de etansare pe sfera
- disponibil de la 1/8" la 1"1/4.
- Conformitate : ROHS
- Presiune maxima de lucru : 40 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Corp : alama nichelata
- Piulita de blocare : alama nichelata
- Tija actionare : alama
- Garnituri : NBR (cauciuc)
- Garnitura tija : NBR (cauciuc)
- Etansare bila : NBR (cauciuc)
- Maner actionare : zamac
- Catalog robineti (universal and light series) : Deschide

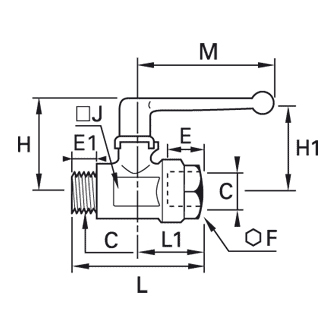

| Cod | C | E mm | E1 mm | F mm | H mm | H1 mm | J mm | L mm | L1 mm | M mm | DN mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0401 04 10 | G1/8 | 8 | 7 | 14 | 35 | 29 | 14 | 45 | 25 | 48 | 4 |
|
Adauga |
| 0401 05 10 | G1/8 | 8 | 7 | 19 | 38 | 31 | 19 | 51 | 27 | 48 | 5 |
|
Adauga |
| 0401 07 13 | G1/4 | 12 | 9 | 19 | 38 | 31 | 19 | 52 | 28 | 48 | 7 |
|
Adauga |
| 0401 10 17 | G3/8 | 12 | 11 | 24 | 45 | 43 | 24 | 58 | 31 | 69 | 10 |
|
Adauga |
| 0401 13 21 | G1/2 | 15 | 12 | 27 | 47 | 44 | 27 | 66 | 34 | 69 | 13 |
|
Adauga |
| 0401 18 27 | G3/4 | 16,5 | 12 | 38 | 63 | 54 | 39 | 79 | 39 | 108 | 18 |
|
Adauga |
| 0401 23 34 | G1 | 19 | 15 | 46 | 67 | 57 | 48 | 91 | 47 | 108 | 23 |
|
Adauga |
| 0401 32 42 | G1 1/4 | 21,5 | 18 | 60 | 97 | 115 | 55 | 113 | 59 | 108 | 32 |
|
Adauga |
