Robinet cu sfera, de panou, 3/3
Tip produs: 0448
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C

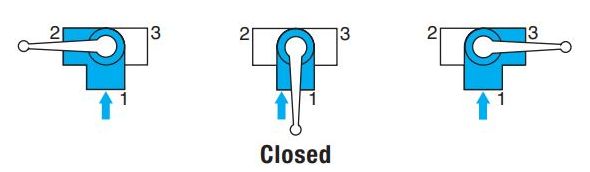

Robinet cu bila, 3/3 cu piulita de montare pe panou, schema de functionare:
- debit maximal (full flow)
- etansare optima (O-ringuri de compensare)
- disponibil de la 1/8" la 1/2".
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Corp : alama nichelata
- Piulita de blocare : alama nichelata
- Tija actionare : alama
- Garnituri : NBR (cauciuc)
- Garnitura tija : NBR (cauciuc)
- Etansare bila : NBR (cauciuc)
- Maner actionare : zamac
- Surub de reglaj : alama nichelata
- Catalog robineti (universal and light series) : Deschide

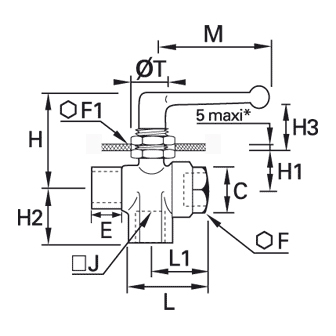

| Cod | C | E mm | F mm | F1 mm | H mm | H1 mm | H2 mm | H3 mm | J mm | L mm | L1 mm | M mm | ØT mm | DN mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0448 04 10 | G1/8 | 8 | 14 | 22 | 37 | 14 | 18 | 12 | 14 | 44 | 25 | 48 | 16,5 | 4 |
|
Adauga |
| 0448 06 13 | G1/4 | 12 | 19 | 24 | 45 | 19 | 24 | 14 | 22 | 53 | 28 | 48 | 20,5 | 6 |
|
Adauga |
| 0448 09 17 | G3/8 | 12 | 24 | 27 | 50 | 21 | 27 | 21 | 25 | 59 | 31 | 69 | 20,5 | 9 |
|
Adauga |
| 0448 12 21 | G1/2 | 15 | 27 | 27 | 51 | 23 | 33 | 21 | 29 | 67 | 34 | 69 | 20,5 | 12 |
|
Adauga |
