Regulator de debit la intrare, filet BSPP
Drosel pentru alimentare, reglaj cu surubelnita
Presiune maxima de lucru: 10 bar
Temperatura: 0⁰C ... +70⁰C

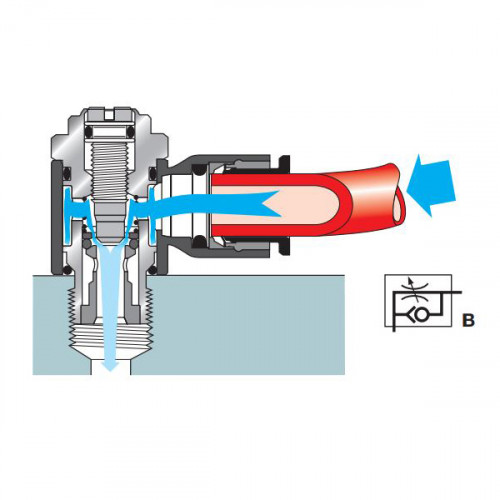

Drosel pentru alimentare (B) tip banjo cu surub de reglaj ascuns si racord push-in
- reglaj progresiv ferm si precis cu surubelnita
- constructie compacta ce asigura stabilitatea in timp a reglajului de debit
- poate fi utilizat in toate instalatiile pneumatice datorita dimensiunilor reduse si performantelor inalte
- Conformitate : ROHS
- Presiune maxima de lucru : 10 bar
- Temperatura maxima de lucru : 70 ⁰C
- Corp : polimer tehnic
- Corp 2 : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Surub : alama nichelata
Informatii de la producator
Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass
Parker Legris flow control regulators, available with polymer, nickel-plated brass, stainless steel, or aluminium bodies and featuring external or recessed adjustment screws, offer precise adjustment, consistent control, and compactness.
Parker Legris flow control regulators are designed for compactness and versatility, offering a range of body materials, including polymer, nickel-plated brass, stainless steel, and aluminium, to meet diverse application needs. With a higher maximum flow rate than standard regulators on the market, these regulators enhance productivity. Featuring either external or recessed adjustment screws, they enable precise adjustments and ensure reliable performance across various settings.
Features/Benefits:
- Improved Productivity
• Higher maximum flow than standard regulators
• Full flow with minimum pressure drop (model 7060)
• Optimal control of the cylinder rod speed
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
• Reduce compressed air and energy consumption
- Accuracy & Performance
• Precise adjustment for accurate flow regulation from initial to maximum opening
• Constant cylinder rod displacement speed
• Long-term stability of flow
• Reduced weight (polymer version)
• Mechanical strength and corrosion resistance with nickel-plated brass version
- Ergonomics & Large Range
• External adjustment screw: easy to adjust without tooling and lockable
• Recessed adjustment screw: more compact and protects the adjustment mechanism
• Uni-directional: exhaust or inlet
• Bi-directional: adjustment of air flow in both directions
• 360° positioning
• NPT version on request
Markets:
• Factory Automation
• Vehicle Assembly Facilities
• Food and Beverage
• Semiconductor
• Packaging Machinery
Applications:
• Pneumatic Cylinder Control
• Low Pressure Compressed Air Flow Regulation and metric thread
| Product Style | Regulators with Recessed Adjustment |
| Brand | Parker |
| Brand | Legris |
| Division | Low Pressure Connectors Europe Division |
| Industry | Industrial Manufacturing Equipment |
| Industry | Industrial Processing |
| Application | Robotics |
| Application | Textile |
| Application | Automotive Process |
| Application | Packaging |
| Technology | Pneumatics |
| Product Type | Function Fittings and Flow Control |
| Maximum Operating Pressure | 10 bar |
| Minimum Operating Pressure | 1 bar |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 2 Type | Male BSPP |
| Hex Size | 13 mm |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Flow Direction | Supply |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Weight | 0.017 kg |
| Height | 25 mm |
| Quantity per Box | 10 |
| Nut Material | Nickel-Plated Brass |
| For Fluid Type | Compressed air, Other fluids: contact us |
| Connection 1 Type | Tube |
| Connection 1 Size | 4 mm |
| Connection 2 Size | G 1/8 O.D. |
| Maximum Operating Temperature | 158 °F |
| Maximum Operating Pressure | 145 psi |
| Minimum Operating Pressure | 14.5 psi |
| Minimum Operating Temperature | 32 °F |
| Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1. | view |
| Certificate of conformity - Mineral Conflict Statement_connectic. | view |
| Flow Control Regulators Datasheet | view |
| Learn more about Parker Legris connectors and Nycoil tubing including LF3000, LF3600, LF3800, Supercoil air hose, and a variety of other pneumatic fittings, valves, and tubing. | view |
| 7011 04 10 | Part Solutions |
- Catalog regulatoare de debit polimer : Deschide

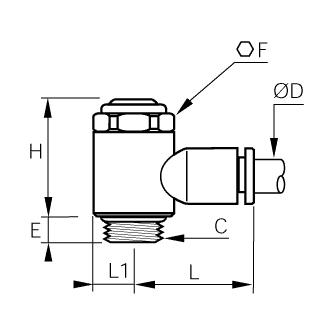

| Cod | ØD mm | C | E mm | F mm | H mm | L mm | L1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 7011 04 10 | 4 | G1/8 | 5 | 13 | 25 | 19 | 7 |
|
Adauga |
| 7011 04 19 | 4 | M5x0,8 | 4 | 8 | 17,5 | 17 | 5 |
|
Adauga |
| 7011 04 20 | 4 | 10-32 | 4 | 8 | 17,5 | 16,5 | 4,75 |
|
Adauga |
| 7011 06 10 | 6 | G1/8 | 5 | 13 | 25 | 21 | 7 |
|
Adauga |
| 7011 06 13 | 6 | G1/4 | 8 | 17 | 26,5 | 22 | 9,5 |
|
Adauga |
| 7011 06 19 | 6 | M5x0,8 | 4 | 8 | 17,5 | 19 | 5 |
|
Adauga |
| 7011 08 10 | 8 | G1/8 | 5 | 13 | 25 | 26 | 7 |
|
Adauga |
| 7011 08 13 | 8 | G1/4 | 8 | 17 | 26,5 | 27 | 9,5 |
|
Adauga |
| 7011 08 17 | 8 | G3/8 | 7,5 | 20 | 37,5 | 29 | 11 |
|
Adauga |
| 7011 10 13 | 10 | G1/4 | 8 | 17 | 26,5 | 29 | 9,5 |
|
Adauga |
| 7011 10 17 | 10 | G3/8 | 7,5 | 20 | 37,5 | 31 | 11 |
|
Adauga |
