Regulator compact de debit la evacuare, filet BSPT sau NPT
Tip produs: 7065
Drosel pentru evacuare tip banjo cu surub de reglaj extern si racord push-in
Presiune maxima de lucru: 10 bar
Temperatura: 0⁰C ... +70⁰C

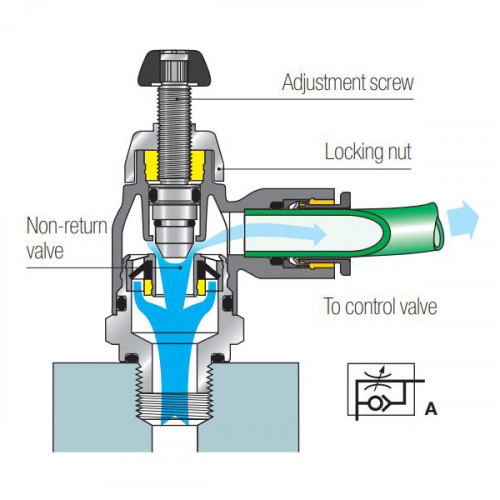

Drosel pentru evacuare (A) tip banjo cu surub de reglaj extern si racord push-in
- reglaj progresiv ferm si precis
- piulita de blocare pentru asigurarea stabilitatii reglajului
- poate fi utilizat in toate instalatiile pneumatice datorita dimensiunilor reduse si performantelor inalte
- Conformitate : ROHS
- Presiune maxima de lucru : 10 bar
- Temperatura maxima de lucru : 70 ⁰C
- Corp : polimer tehnic
- Sub-base : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Tratament : PTFE (teflon)
- Surub : alama nichelata
- Surub de reglaj : alama nichelata
- Catalog regulatoare de debit polimer : Deschide

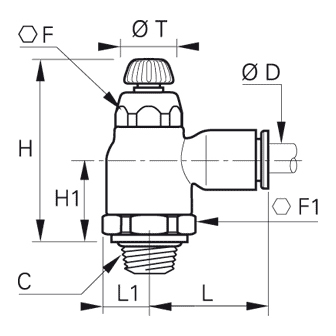

| Cod | ØD mm | C | F mm | F1 mm | H min mm | H max mm | H1 mm | L mm | L1 mm | ØT mm | ØG mm | J mm | L2 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7065 06 10 | 6 | R1/8 | 10 | 16 | 36,5 | 42,5 | 15 | 22 | 8 | 10 |
|
Adauga | |||
| 7065 08 10 | 8 | R1/8 | 14 | 19 | 40 | 45 | 16,5 | 28 | 10,5 | 14 |
|
Adauga | |||
| 7065 08 13 | 8 | R1/4 | 14 | 19 | 40 | 45 | 16,5 | 28 | 10,5 | 14 |
|
Adauga | |||
| 7065 10 13 | 10 | R1/4 | 17 | 23 | 43,5 | 51,5 | 18 | 31,5 | 12,5 | 17 |
|
Adauga | |||
| 7065 10 17 | 10 | R3/8 | 17 | 23 | 43,5 | 51,5 | 18 | 31,5 | 12,5 | 17 |
|
Adauga | |||
| 7065 10 21 | 10 | R1/2 | 17 | 23 | 43,5 | 51,5 | 18 | 31,5 | 12,5 | 17 |
|
Adauga | |||
| 7065 12 13 | 12 | R1/4 | 17 | 23 | 43,5 | 51,5 | 18 | 35 | 12,5 | 17 |
|
Adauga | |||
| 7065 12 17 | 12 | R3/8 | 17 | 23 | 43,5 | 51,5 | 18 | 35 | 12,5 | 17 |
|
Adauga | |||
| 7065 12 21 | 12 | R1/2 | 17 | 23 | 43,5 | 51,5 | 18 | 35 | 12,5 | 17 |
|
Adauga | |||
| 7065 56 11 | 1/4 inch | NPT1/8 | 15,977 | 9,982 | 36,500 | 42,494 | 21,488 | 14,986 | 10,922 | 17,475 | 19,990 |
|
Adauga | ||
| 7065 56 14 | 1/4 inch | NPT1/4 | 15,977 | 9,982 | 36,500 | 42,494 | 21,488 | 14,986 | 10,922 | 17,475 | 19,990 |
|
Adauga | ||
| 7065 60 14 | 3/8 inch | NPT1/4 | 22,987 | 16,993 | 43,485 | 51,486 | 30,988 | 17,983 | 16,002 | 24,994 | 25,984 |
|
Adauga | ||
| 7065 60 18 | 3/8 inch | NPT3/8 | 22,987 | 16,993 | 43,485 | 51,486 | 30,988 | 17,983 | 16,002 | 24,994 | 25,984 |
|
Adauga |
