Racord rapid Y, filet exterior BSPT
Tip produs: 3148
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid Y push-in, filet exterior conic preteflonat
- strangere pe exterior cu cheie fixa
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Sub-base : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Tratament : PTFE (teflon)
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

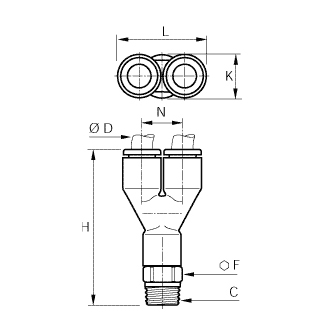

| Cod | ØD mm | C | F mm | H mm | K mm | L mm | N mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 3148 04 10 | 4 | R1/8 | 10 | 32,5 | 8,5 | 17,5 | 9 |
|
Adauga |
| 3148 04 13 | 4 | R1/4 | 14 | 33 | 8,5 | 17,5 | 9 |
|
Adauga |
| 3148 06 10 | 6 | R1/8 | 10 | 39,5 | 10,5 | 21,5 | 11 |
|
Adauga |
| 3148 06 13 | 6 | R1/4 | 14 | 40 | 10,5 | 21,5 | 11 |
|
Adauga |
| 3148 08 10 | 8 | R1/8 | 13 | 56,5 | 13,5 | 28 | 14,5 |
|
Adauga |
| 3148 08 13 | 8 | R1/4 | 14 | 55,5 | 13,5 | 28 | 14,5 |
|
Adauga |
| 3148 08 17 | 8 | R3/8 | 16 | 48,5 | 13,5 | 28 | 14,5 |
|
Adauga |
| 3148 10 13 | 10 | R1/4 | 14 | 60 | 19 | 39 | 20 |
|
Adauga |
| 3148 10 17 | 10 | R3/8 | 16 | 60,5 | 19 | 39 | 20 |
|
Adauga |
| 3148 10 21 | 10 | R1/2 | 24 | 61 | 19 | 39 | 20 |
|
Adauga |
| 3148 12 17 | 12 | R3/8 | 19 | 66 | 19 | 39 | 20 |
|
Adauga |
| 3148 12 21 | 12 | R1/2 | 21 | 66 | 19 | 39 | 20 |
|
Adauga |
