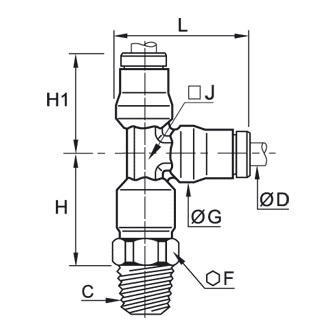

Racord rapid T asimetric, filet exterior BSPT

In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments.

PRODUCT ADVANTAGES:

> High Performance
- Resistant up to +150°C at 30 bar
- Excellent mechanical performance
- Long threads to resist shock and vibration
- Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
- Full flow, minimal pressure drop

> Versatility
- Materials conform to FDA standards
- Spring collet gripping system suitable for both metal(grooved) and polymer tubing
- Excellent resistance to high pressure and vacuum
- Excellent chemical compatibility
- More than 250 part numbers
- One fitting for numerous applications: stock optimisation
- Manual connection and disconnection
- Compact and ergonomic

> Reliability
- High performance brass for increased lifespan
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

PRODUCT TYPES:
- Stud Fittings
- Stud Standpipe
- Cartridge
- Stud Elbow
- Extended Stud Elbow
- Compact Elbow
- Stud Branch Tee
- Stud Run Tee
- Single Banjo
- Tube-To-Tube Fittings
- Equal Tube-To-Tube Connector
- Equal Elbow
- Equal Tee
- Bulkhead Connector Fittings
- Equal Bulkhead Connector
- Bulkhead Connector
- Equal Bulkhead Elbow
- Plug-In Reducer
- Plug-In Adaptor
- Plug-In Increaser
- Plug-In Barb Connector
- Stem Connector
- Blanking Plug
- Disconnection Tool
- Release Button Covers

APPLICATIONS:
- Food Process
- Coffee Machines
- In-Plant Automotive
- Medical Equipment
- Printing
- Misting
- Welding Robots

TECHNICAL CHARACTERISTICS:
- Fluids: Compressed Air, Grease, Lubricant, Water
- Materials: Chemical nickel-plated brass, FKM
- Pressure: Vacuum to 30 bar
- Temperature: -20°C to +150°C
- Ø metric: 4-14 mm

REGULATIONS:
>Industrial
- ISO 14743: pneumatic transmissions, push-in fittings for thermoplastic tubing
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- RG: 1907/2006 (REACH)
- DI: 94/9/EC (ATEX )
- UL94 V-0: please consult us
>Food
- RG: 21CFR (FDA)
- RG: 1935/2004/EC (minimum fl ow 0.02 l/h)
- USDA NSF H1: grease
- ASTM B733-04: autocatalytic (electroless) nickel-phosphorus coatings

Technologies:
- Stud Fittings
- Tube-to-Tube Fittings
- Bulkhead Connectors
- Push-In Fittings
- Nickel-Plated Brass Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors
- Swivel Fittings

Application	Fluid Control
Application	General Industrial
Application	In Plant Pneumatic
Application	Industrial
Application	Medical
Application	Pneumatic
Application	Process Control
Application	Transportation
Body Material	Brass
Brand	Legris
Brand	Parker
Coating	FDA Chemical Nickel-plated
Configuration	Tube to Port
Connection 1 Size	4 mm (O.D.)
Connection 1 Type	Tube
Connection 2 Size	4 mm (O.D.)
Connection 2 Type	Tube
Connection 3 Size	R 1/8
Connection 3 Type	Male BSPT
Division	Low Pressure Connectors Europe Division
For Fluid Type	Air (Compressed Air)
For Fluid Type	Lubricants (Grease)
For Fluid Type	Water
Industry	Food & Beverage
Industry	General Industrial
Industry	Healthcare & Life Sciences
Industry	Industrial Processing
Industry	Transportation
Maximum Operating Pressure	30 bar
Maximum Operating Temperature	150 °C
Minimum Operating Temperature	-25 °C
Product Type	Push-to-Connect Fittings
Quantity per Box	10
Seal Material	FKM
Shape	Run Tee
Specifications Met	ATEX DI: 94/9/EC
Specifications Met	EC RG: 1935/2004
Specifications Met	FDA 21 CFR (Food)
Specifications Met	PED
Specifications Met	REACH
Specifications Met	RoHS
Specifications Met	UL 94 V-0 (Please Consult Us)
Technology	Fluid & Gas Handling
Vacuum Pressure Rating	755 mm-Hg
Weight	0.018 kg
