Racord rapid L, filet exterior BSPT
Tip produs: 3609
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +150⁰C
Vacuum: 755 mmHg
Racord rapid cot push-in, alama nichelata, filet exterior conic
- strangere pe exterior cu cheie fixa
- constructie robusta, compacta
- suprafete exterioare cu forme usor de curatat
- partile componente respecta standardele FDA si reglemantarea 1935/2004/EC
- rezistenta foarte buna la coroziune
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 150 ⁰C
- Vacuum : 755 mmHg
- Corp : alama nichelata (procedeu chimic aprobat FDA)
- Sub-base : alama nichelata (procedeu chimic aprobat FDA)
- Garnituri : FKM (viton)
- Garnitura : alama nichelata (procedeu chimic aprobat FDA)
- Catalog racorduri rapide seria LF3600 : Deschide

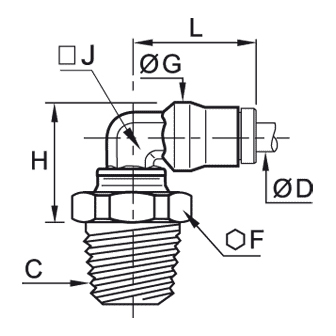

| Cod | ØD mm | C | F mm | ØG mm | H mm | J mm | L mm | K mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 3609 04 10 | 4 | R1/8 | 13 | 10 | 15 | 7 | 18 |
|
Adauga | |
| 3609 04 11 | 4 | NPT1/8 | 11 | 10 | 15 | 18 | 12 |
|
Adauga | |
| 3609 04 13 | 4 | R1/4 | 14 | 10 | 17 | 7 | 18 |
|
Adauga | |
| 3609 04 14 | 4 | NPT1/4 | 14 | 10 | 17 | 7 | 18 | 15 |
|
Adauga |
| 3609 06 10 | 6 | R1/8 | 13 | 12 | 17,5 | 8 | 21,5 |
|
Adauga | |
| 3609 06 13 | 6 | R1/4 | 14 | 12 | 19 | 8 | 21,5 |
|
Adauga | |
| 3609 08 10 | 8 | R1/8 | 13 | 15 | 19,5 | 10 | 23,5 |
|
Adauga | |
| 3609 08 13 | 8 | R1/4 | 14 | 15 | 21 | 10 | 23,5 |
|
Adauga | |
| 3609 08 17 | 8 | R3/8 | 17 | 15 | 21 | 10 | 23,5 |
|
Adauga | |
| 3609 10 13 | 10 | R1/4 | 15 | 17,5 | 23,5 | 12 | 29 |
|
Adauga | |
| 3609 10 17 | 10 | R3/8 | 17 | 17,5 | 25,5 | 12 | 29 |
|
Adauga | |
| 3609 12 13 | 12 | R1/4 | 15 | 19,5 | 26 | 15 | 31 |
|
Adauga | |
| 3609 12 17 | 12 | R3/8 | 17 | 19,5 | 28,5 | 15 | 31 |
|
Adauga | |
| 3609 12 21 | 12 | R1/2 | 21 | 19,5 | 28,5 | 15 | 31 |
|
Adauga | |
| 3609 14 17 | 14 | R3/8 | 19 | 21,5 | 29 | 16 | 34 |
|
Adauga | |
| 3609 14 21 | 14 | R1/2 | 22 | 21,5 | 30 | 16 | 34 |
|
Adauga | |
| 3609 56 11 | 1/4 inch | NPT1/8 | 11 | 12,5 | 17,5 | 8 | 22 | 12 |
|
Adauga |
| 3609 56 14 | 1/4 inch | NPT1/4 | 14 | 12,5 | 19 | 22 | 15 |
|
Adauga | |
| 3609 56 18 | 1/4 inch | NPT3/8 | 18 | 12,5 | 19 | 22 | 19,5 |
|
Adauga | |
| 3609 60 14 | 3/8 inch | NPT1/4 | 15 | 17 | 23,5 | 29 | 16 |
|
Adauga | |
| 3609 60 18 | 3/8 inch | NPT3/8 | 18 | 17 | 26 | 29 | 19,5 |
|
Adauga | |
| 3609 60 22 | 3/8 inch | NPT1/2 | 22 | 17 | 27 | 29 | 24 |
|
Adauga | |
| 3609 62 18 | 1/2 inch | NPT3/8 | 18 | 20 | 29 | 31 | 19,5 |
|
Adauga | |
| 3609 62 22 | 1/2 inch | NPT1/2 | 22 | 20 | 29 | 31 | 24 |
|
Adauga |
