Racord rapid drept, trecere panou
Tip produs: 3616
Presiune maxima de lucru: 30 bar
Temperatura: -20⁰C ... +150⁰C
Vacuum: 755 mmHg
Racord rapid prelungitor trecere panou, push-in, alama nichelata
- constructie robusta, compacta
- suprafete exterioare cu forme usor de curatat
- partile componente respecta standardele FDA si reglemantarea 1935/2004/EC
- rezistenta foarte buna la coroziune
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- Conformitate : ROHS
- Presiune maxima de lucru : 30 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 150 ⁰C
- Vacuum : 755 mmHg
- Corp : alama nichelata (procedeu chimic aprobat FDA)
- Piulita de blocare : alama nichelata (procedeu chimic aprobat FDA)
- Garnituri : FKM (viton)
- Garnitura : alama nichelata (procedeu chimic aprobat FDA)
- Catalog racorduri rapide seria LF3600 : Deschide

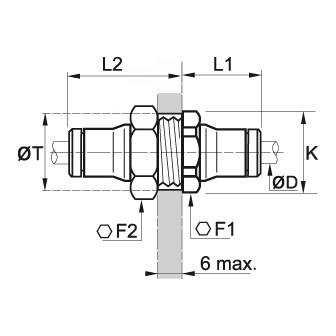

| Cod | ØD mm | F1 mm | F2 mm | K mm | L2 mm | L1 mm | ØT min mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 3616 04 00 | 4 | 13 | 14 | 14 | 20 | 14 | 12,5 |
|
Adauga |
| 3616 06 00 | 6 | 16 | 17 | 17,5 | 22 | 17 | 15 |
|
Adauga |
| 3616 08 00 | 8 | 18 | 19 | 19,5 | 23,5 | 18,5 | 17 |
|
Adauga |
| 3616 10 00 | 10 | 22 | 27 | 24 | 26,5 | 21,5 | 21 |
|
Adauga |
| 3616 12 00 | 12 | 24 | 24 | 26 | 27 | 23 | 23 |
|
Adauga |
| 3616 14 00 | 14 | 27 | 27 | 29,5 | 29,5 | 25,5 | 25 |
|
Adauga |
| 3616 56 00 | 1/4 inch | 16,002 | 16,993 | 17,501 | 22,504 | 17,018 | 14,986 |
|
Adauga |
| 3616 60 00 | 3/8 inch | 21,996 | 27,000 | 24,003 | 27,991 | 21,996 | 21,488 |
|
Adauga |
| 3616 62 00 | 1/2 inch | 24,003 | 24,003 | 4,089 | 29,007 | 22,504 | 26,492 |
|
Adauga |
